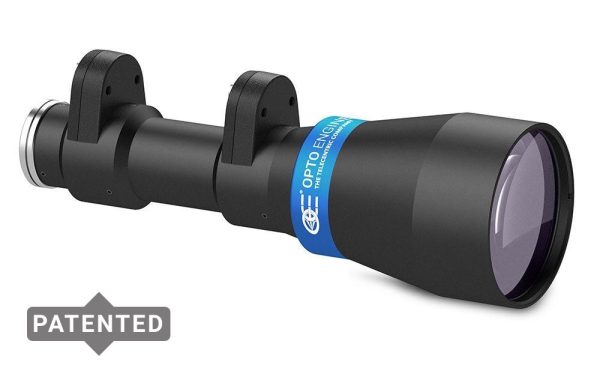

TCZEL23056

TCZEL23056

Specification Value
Magnification range 0.180
0.550 (x)
Magnification ratio 3 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 26.67 x 20.00
8.73 x 6.55 (mm x mm)
1/2.5″ 31.67 x 23.78
10.36 x 7.78 (mm x mm)
1/2″ 35.56 x 26.67
11.64 x 8.73 (mm x mm)
1/1.8″ 39.61 x 29.61
12.96 x 9.69 (mm x mm)
2/3″ 47.22 x 39.39
15.45 x 12.89 (mm x mm)
Working distance range 115 – 155 (mm)
Working f/N 9
16
Telecentricity max < 0.3
< 0.3 (deg)
Distortion max < 0.3
< 0.3 (%)
Depth of field 14.40
2.70 (mm)
Resolution 32
18 (μm)
Number of lenses 2
Liquid lens model Optotune EL-16-40-20D
Temperature sensor Yes
Focal power mode Yes
Response time 5 (ms)
Setting time 25 (ms)
Current range -500 to +500 (mA)
Repeatability using focal power mode ±0.05 (small steps); ±0.1 (large steps) (dpt)
Lifecycles (10%-90% sinusoidal) >1,000,000,000
Connector HR10A-7R-6PB
lens controller Not integrated
Mount C
Phase adjustment Yes
Length 249.3 (mm)
Front diameter 80.0 (mm)
Mass 967 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object, reported at nominal range of the liquid lenses; maximum excursion may be larger.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side.
  4. Percent deviation of the real image compared to an ideal, undistorted image.
  5. At the borders of the field depth the image can be still used for measurement but, to get a perfectly sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. Typical at 30°C, 0 to ±250 mA step.
  8. For controller data, see Optotune website
  9. Indicates the availability of an integrated camera phase adjustment feature.
  10. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Installation

Indoor use only
Magnification range

0.180 0.550 (x)
Accessory developer

Opto
Lens controller

Not integrated
Working f/N

9 16
Depth of field

14.40 2.70 (mm)
Phase adjustment

Yes
Mass

967 (g)
Image circle diameter

11.0 (mm)
Length

249.3 (mm)
Front diameter

80.0 (mm)
Connector

HR10A-7R-6PB
Operating temperature

0-40 (°C)
Storage temperature

0-50 (°C)
Resolution

32 18 (μm)
Operating relative humidity

20-85, non condensing (%)
Working distance range

115 – 155 (mm)
Number of lenses

2
Lifecycle (1090% sin)

>1,000,000,000
Focal power repeatability

±0.05 (small steps); ±0.1 (large steps) (dpt)
Current range

-500 to +500 (mA)
Setting time

25 (ms)
Response time

5 (ms)
Focal power mode

Yes
Temperature sensor

Yes
Liquid lens model

Optotune EL-16-40-20D
Distortion max

< 0.3 < 0.3 (%)
Telecentricity max

< 0.3 < 0.3 (deg)
Magnification ratio

3 (x)
Sensor size

2/3"
Zoom ratio ratio

3 (x)
Zoom ratio range

0.180 0.550 (x)
