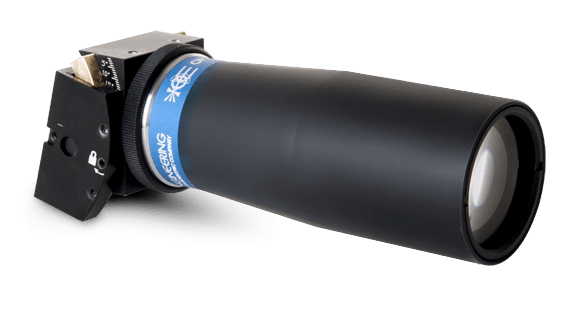

TCSM024

TCSM024

Specification Value
Object tilt 0
15
30
45 (deg)
Mount tilt 0
5.4
11.4
19.3 (deg)
Horizontal magnification 0.350
0.350
0.350
0.350 (x)
Vertical magnification 0.350
0.340
0.309
0.262 (x)
Max sensor size 2/3″
1/3″ 13.71 x 10.29
13.71 x 10.59
13.71 x 11.65
13.71 x 13.74 (mm x mm)
1/2.5″ 16.29 x 12.23
16.29 x 12.59
16.29 x 13.85
16.29 x 16.34 (mm x mm)
1/2″ 18.29 x 13.71
18.29 x 14.12
18.29 x 15.53
18.29 x 18.32 (mm x mm)
1/1.8″ 20.37 x 15.23
20.37 x 15.68
20.37 x 17.25
20.37 x 20.34 (mm x mm)
2/3″ 24.29 x 20.26
24.29 x 20.85
24.29 x 22.94
24.29 x 27.06 (mm x mm)
1/3″ 10.29 x 13.71
10.29 x 14.12
10.29 x 15.53
10.29 x 18.32 (mm x mm)
1/2.5″ 12.23 x 16.29
12.23 x 16.76
12.23 x 18.45
12.23 x 21.76 (mm x mm)
1/2″ 13.71 x 18.29
13.71 x 18.82
13.71 x 20.71
13.71 x 24.43 (mm x mm)
1/1.8″ 13.71 x 12.23
14.12 x 12.23
15.53 x 12.23
18.32 x 12.23 (mm x mm)
2/3″ 20.26 x 24.29
20.26 x 25.00
20.26 x 27.51
20.26 x 32.44 (mm x mm)
Working distance 67.2 (mm)
Working f/N 8
Telecentricity typical (max) < 0.08 (0.10) (deg)
Distortion typical (max) < 0.04 (0.10) (%)
Mount C
Max mount tilt 20 (deg)
Phase adjustment Yes
Length 137.5 (mm)
Front diameter 44.0 (mm)
Mass 493 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

137.5 (mm)
Horizontal magnification

0.350 0.350 0.350 0.350 (x)
Accessory developer

Opto
Max mount tilt

20 (deg)
Mount tilt

0 5.4 11.4 19.3 (deg)
Object tilt

0 15 30 45 (deg)
Front diameter

44.0 (mm)
Mass

493 (g)
Phase adjustment

Yes
Distortion typical (max)

< 0.04 (0.10) (%)
Telecentricity typical (max)

< 0.08 (0.10) (deg)
Working f/N

8
Working distance

67.2 (mm)
Vertical magnification

0.350 0.340 0.309 0.262 (x)
Sensor size

2/3"
Horizontal Zoom ratio

0.350 0.350 0.350 0.350 (x)
Vertical Zoom ratio

0.350 0.340 0.309 0.262 (x)
