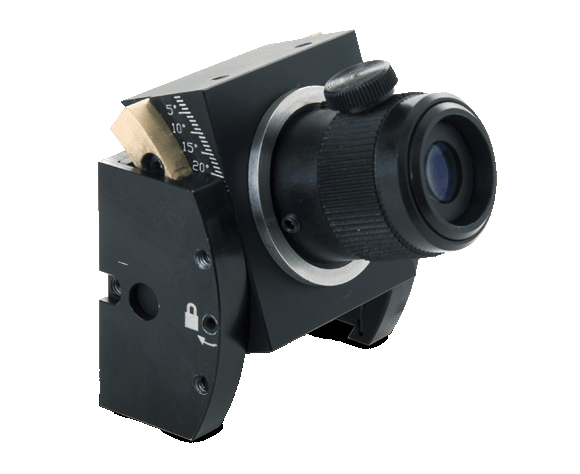

MCSM1-01X

MCSM1-01X

Specification Value
Magnification 1.00 – 0.10
Object tilt 0 – 45.0 (deg)
Mount tilt 0 – 5.8 (deg)
Max sensor size 2/3″
1/3″ 4.80 x 3.60 – 43.00, 53.90 x 51.00 (mm, mm x mm)
1/2″ 6.40 x 4.80 – 57.00, 71.90 x 68.00 (mm, mm x mm)
2/3″ 8.80 x 6.60 – 78.00, 98.90 x 93.00 (mm, mm x mm)
1/3″ 3.60 x 4.80 – 31.00, 42.30 x 69.00 (mm, mm x mm)
1/2″ 4.80 x 6.40 – 41.00, 56.40 x 92.00 (mm, mm x mm)
2/3″ 6.60 x 8.80 – 57.00, 77.60 x 126.00 (mm, mm x mm)
Working distance 46 – 271 (mm)
Focal length 28 (mm)
f/N 6
Working f/N 12 – 6.5
Mount C
Max mount tilt 20 (deg)
Phase adjustment Yes
Width 55.0 (mm)
Height 40.0 (mm)
Length 50.8 (mm)
Front diameter 23 (mm)
Mass 164 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.
