Description

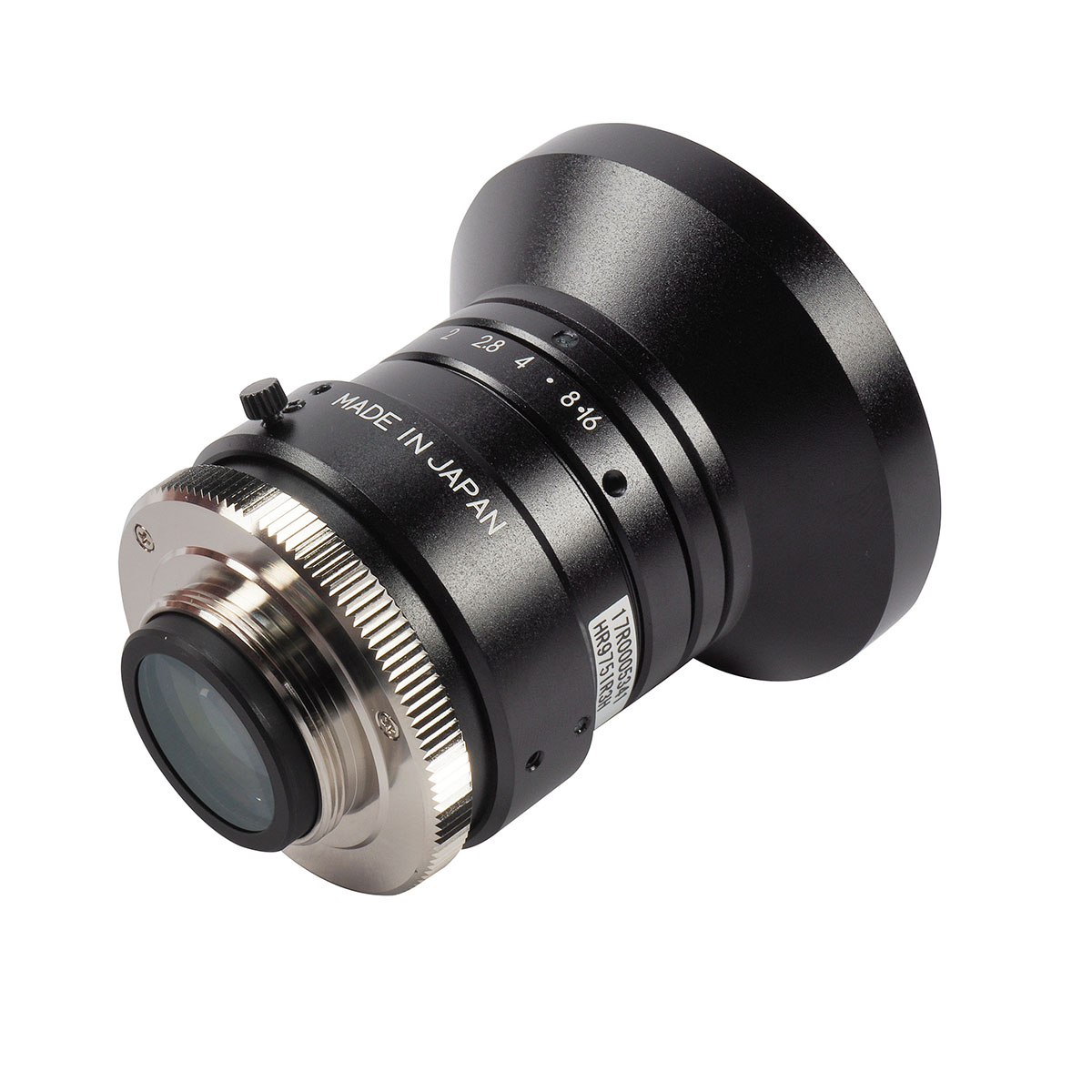

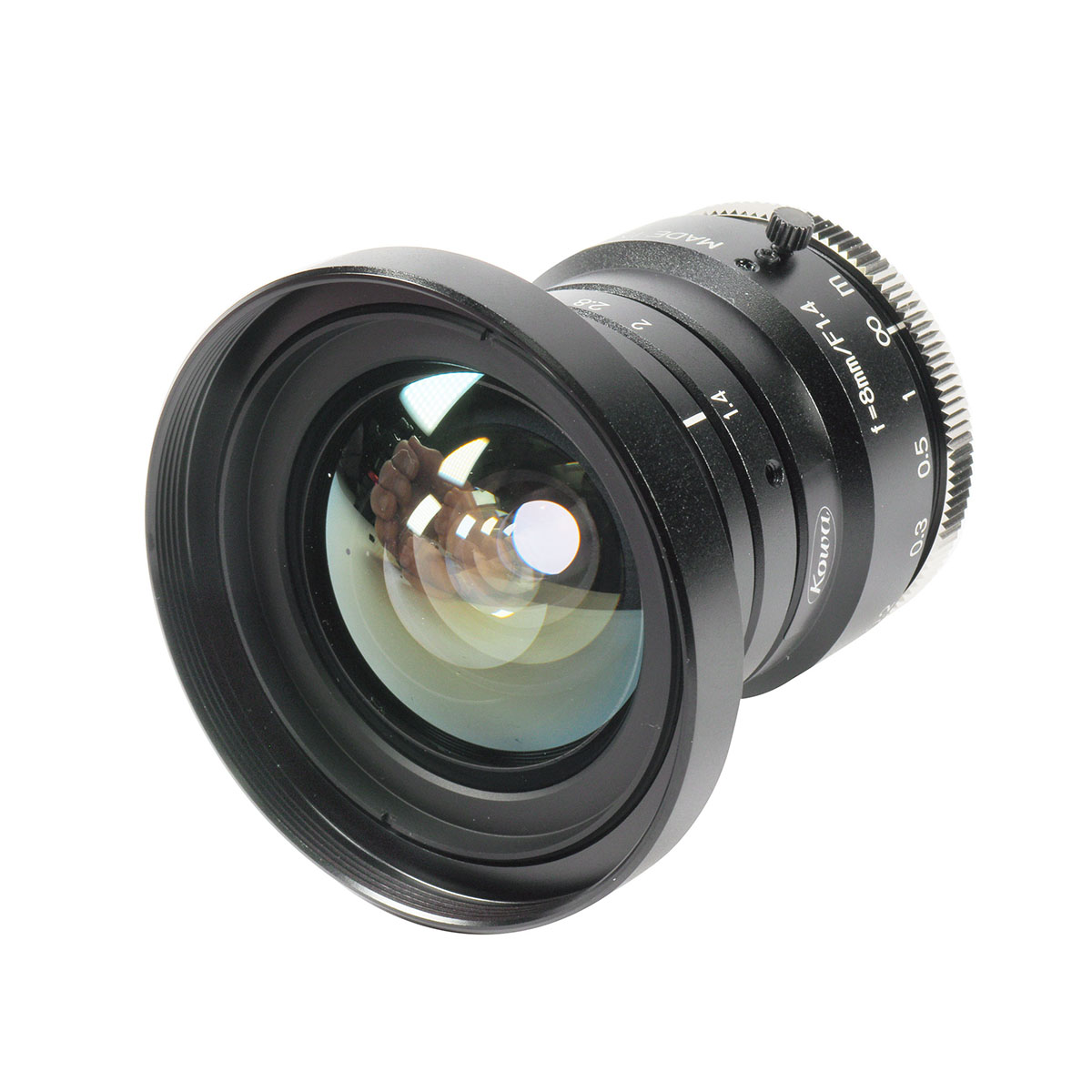

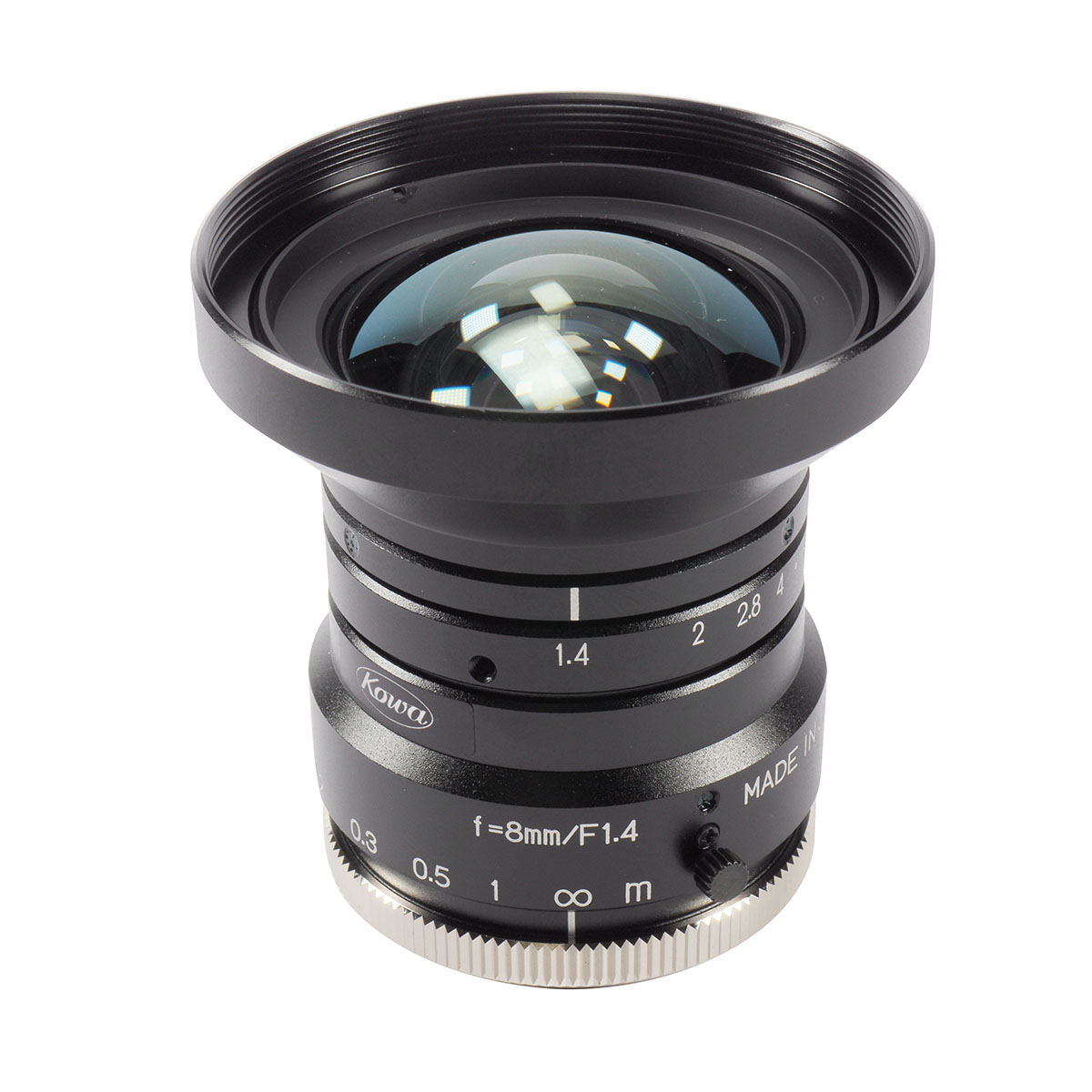

Product Information LM8HC | 1″ 8mm 5MP C-Mount Lens1″ 5 Megapixel C-mount Industrial Lens
Focal length 8mm
For sensors with a pixel size from 5.0μm
Suitable for Sony IMX174, CMOSIS CMV4000 and Sony IMX249 sensors and many more
Very good brightness in the corners
Designed for: 1
Compatible: 2/3,1/1.8,1/2,1/3
| Pixel size (µm) | 5 |
| Iris control | Manual |
| Iris range (f stop) | 1,4 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,1 – ∞ |
| Focus control | Manual |
| Shooting range at mod horizontal (mm) | 196 |
| Shooting range at mod vertical (mm) | 143 |
| Resolution center | 120 |
| Resolution corner | 80 |
| Megapixel | 5 |
| Distortion (tv) (%) | -1,2 |
| Back focus in air (mm) | 11,2 |
| Filter size (mm) | M55 x P0,75 |
| Size (mm) | Ø57 X 58 |
| Weight (g) | 200 |
| Temperature range (℃) | -10°C – +50°C |
| Application | ITS/Traffic Control, Machine Vision, Broadcast |
For more information about the features, visit the Kowa Product Documentation.
