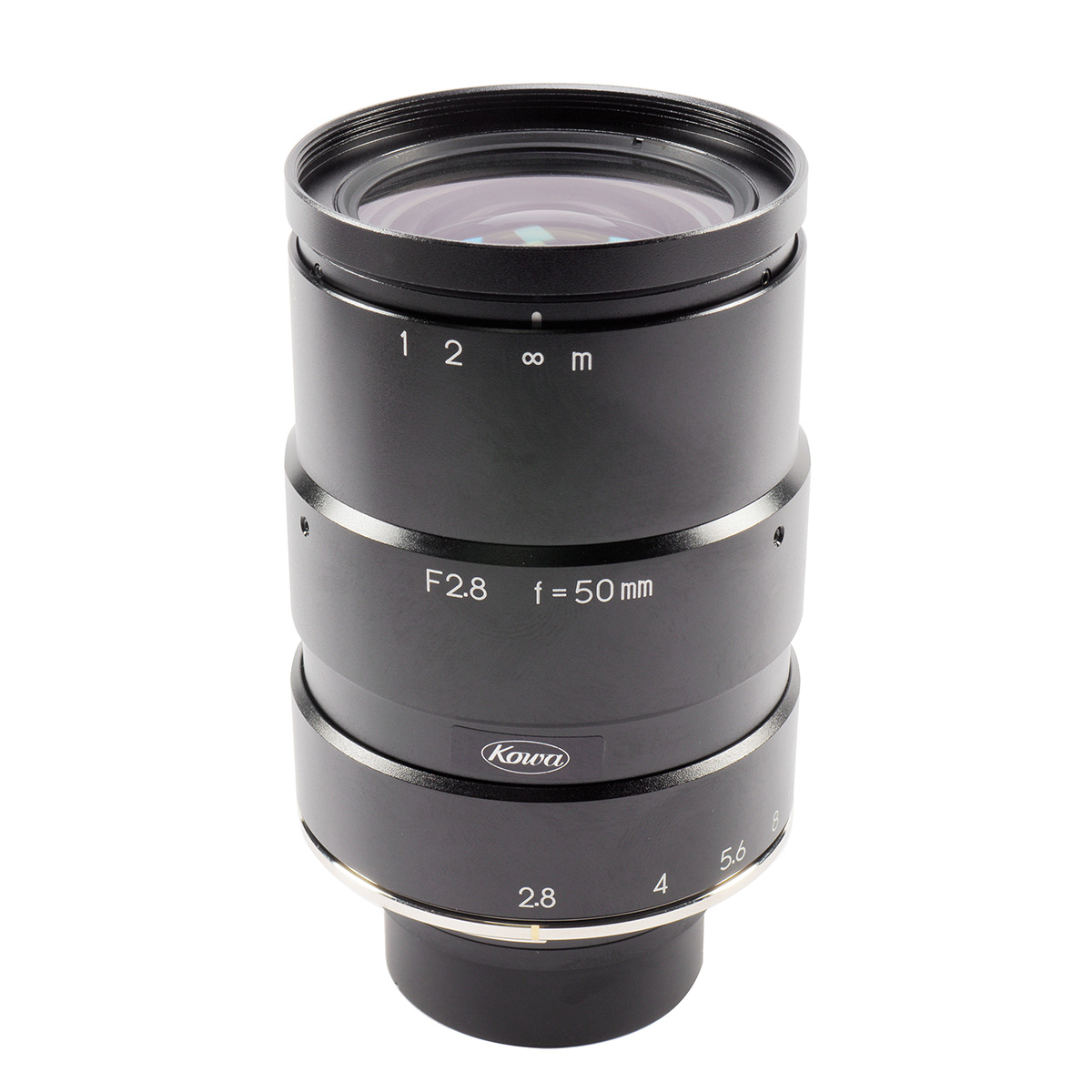

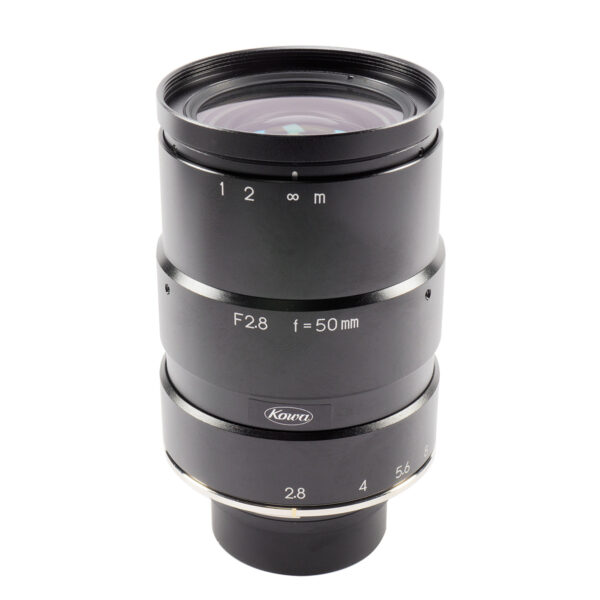

Product Information LM50LF-48 | 43.3mm 50mm TFL-II Mount Line Scan Lens4k Line-Scan-Camera TFL II-Mount
Focal length 50mm
For sensors with a pixel size from 7.5?m
Optimized for 4K line scan cameras Large image circle of 46mm
| Pixel size (µm) | 7,5 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 – 16 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,26 – ? |
| Focus control | Manual |
| Resolution center | 70, 200 |
| Resolution corner | 63 |
| Filter size (mm) | M52 x P0,75 |
| Size (mm) | ?575 X 115 |
| Weight (g) | 470 |
| Temperature range (?) | -10°C – +50°C |
| Application | Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
