Description

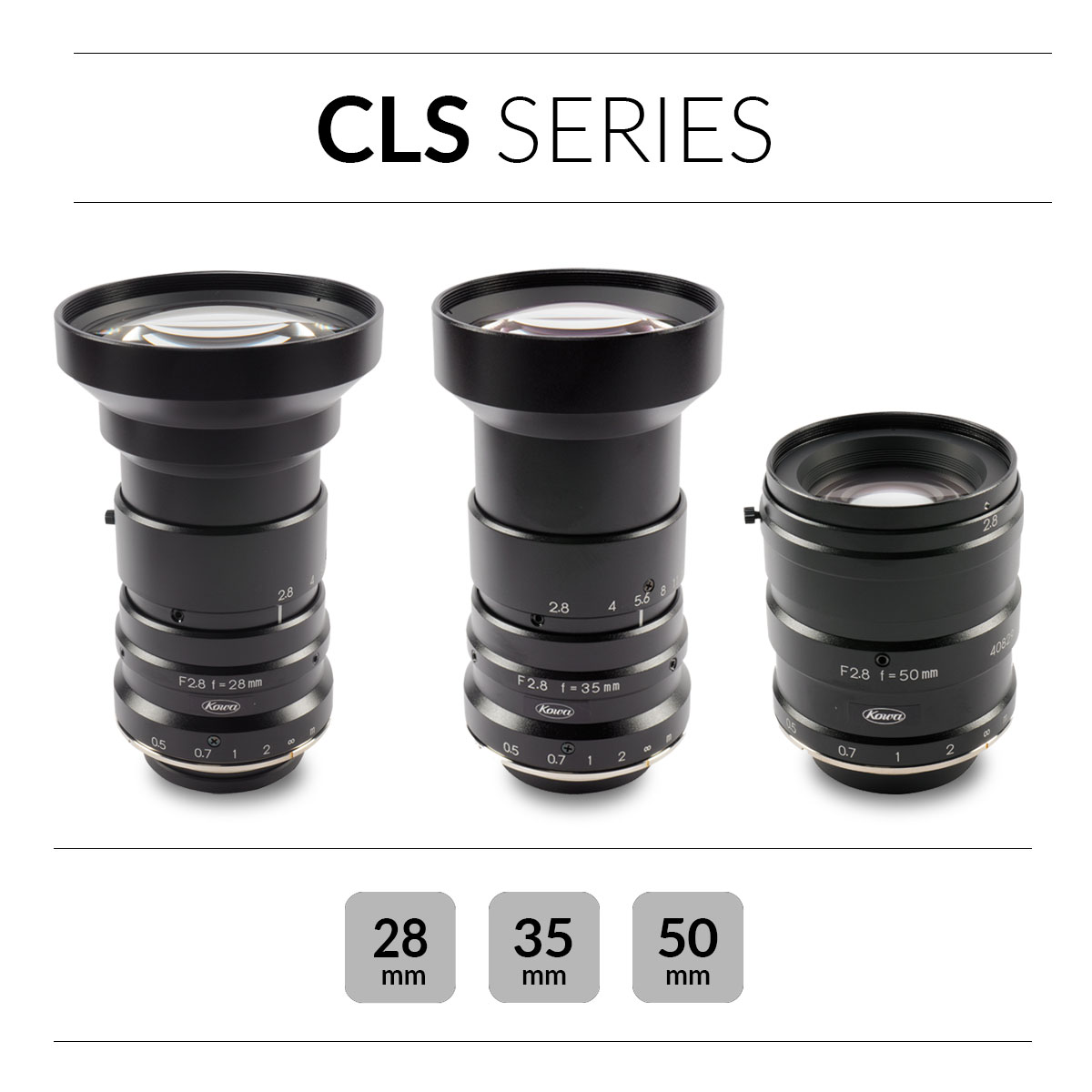

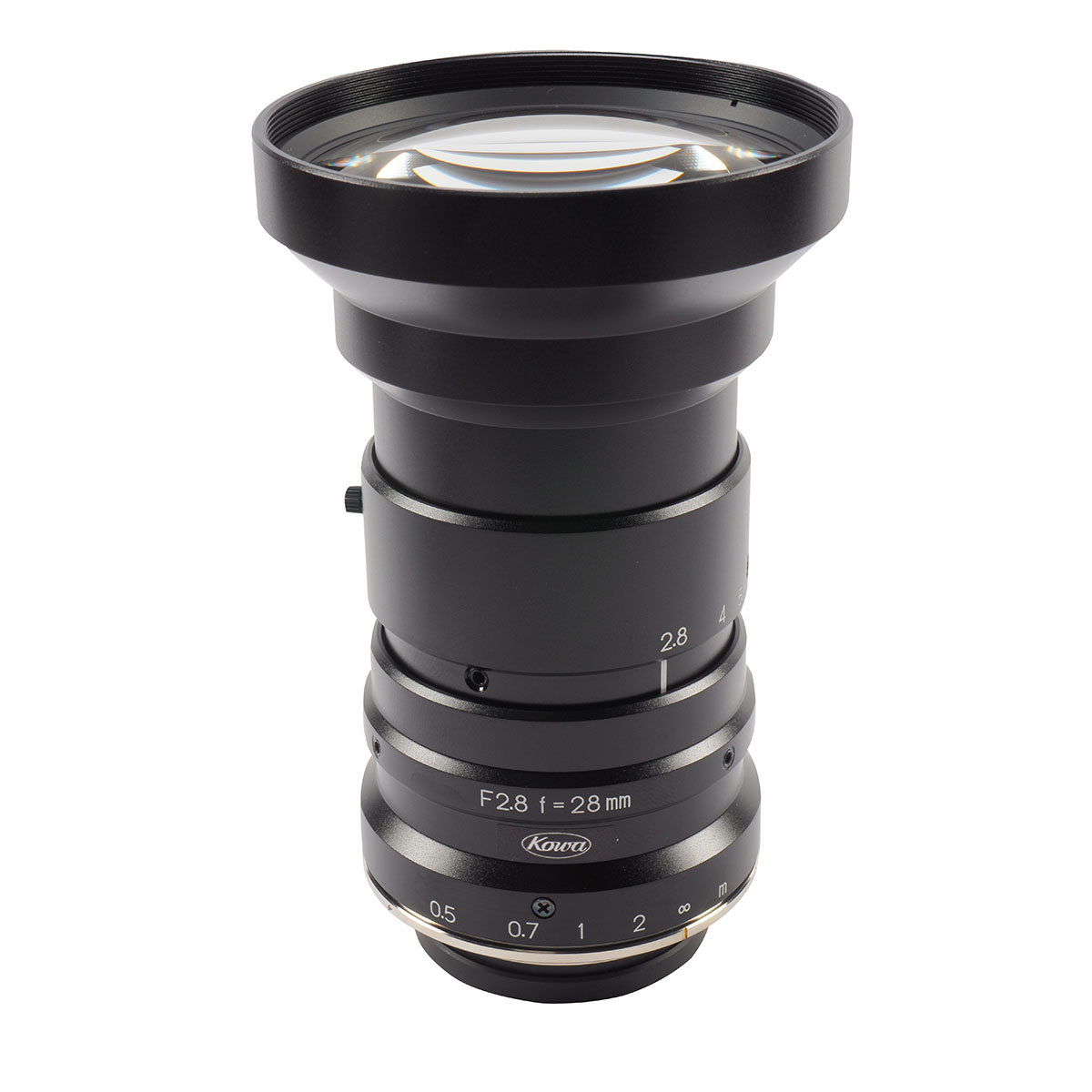

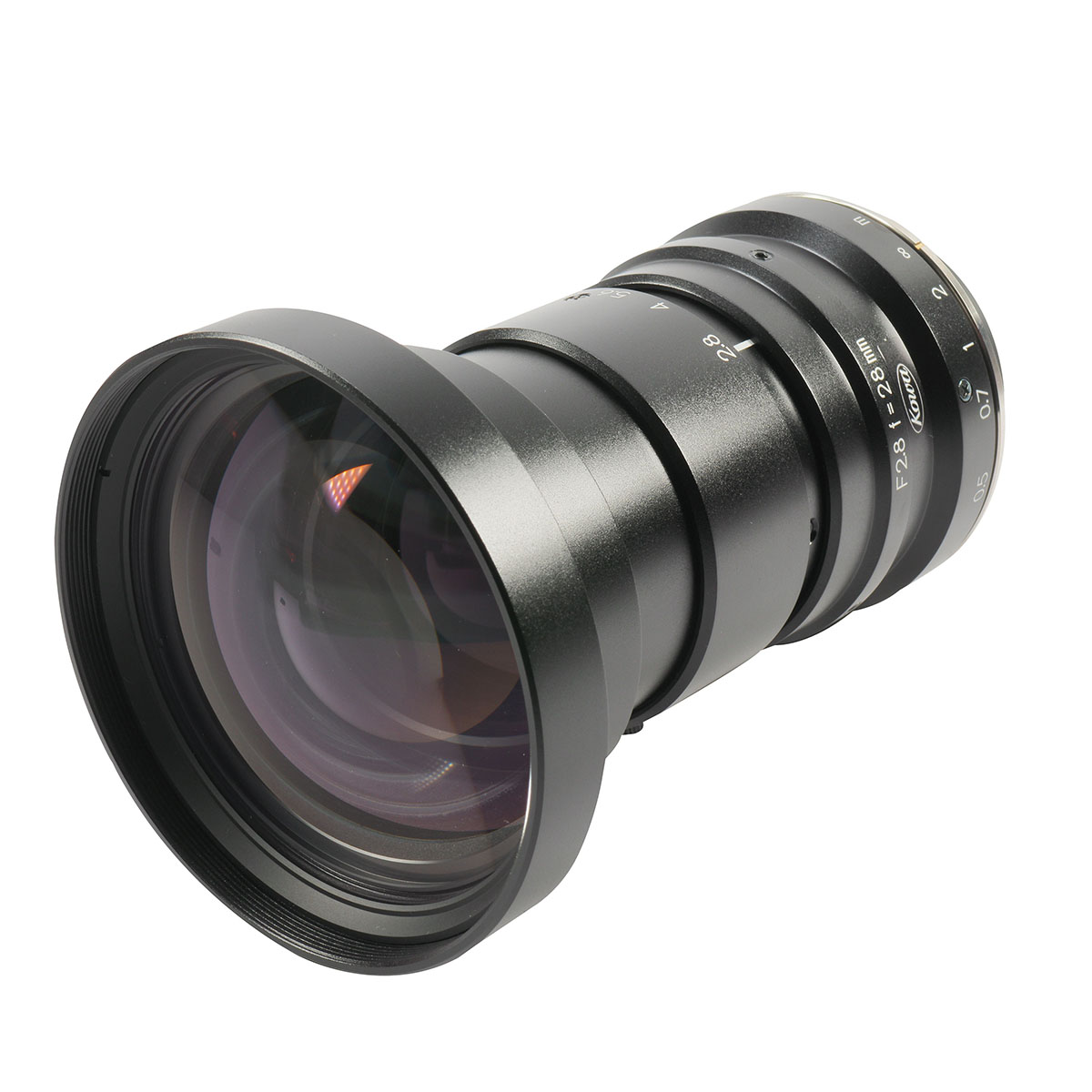

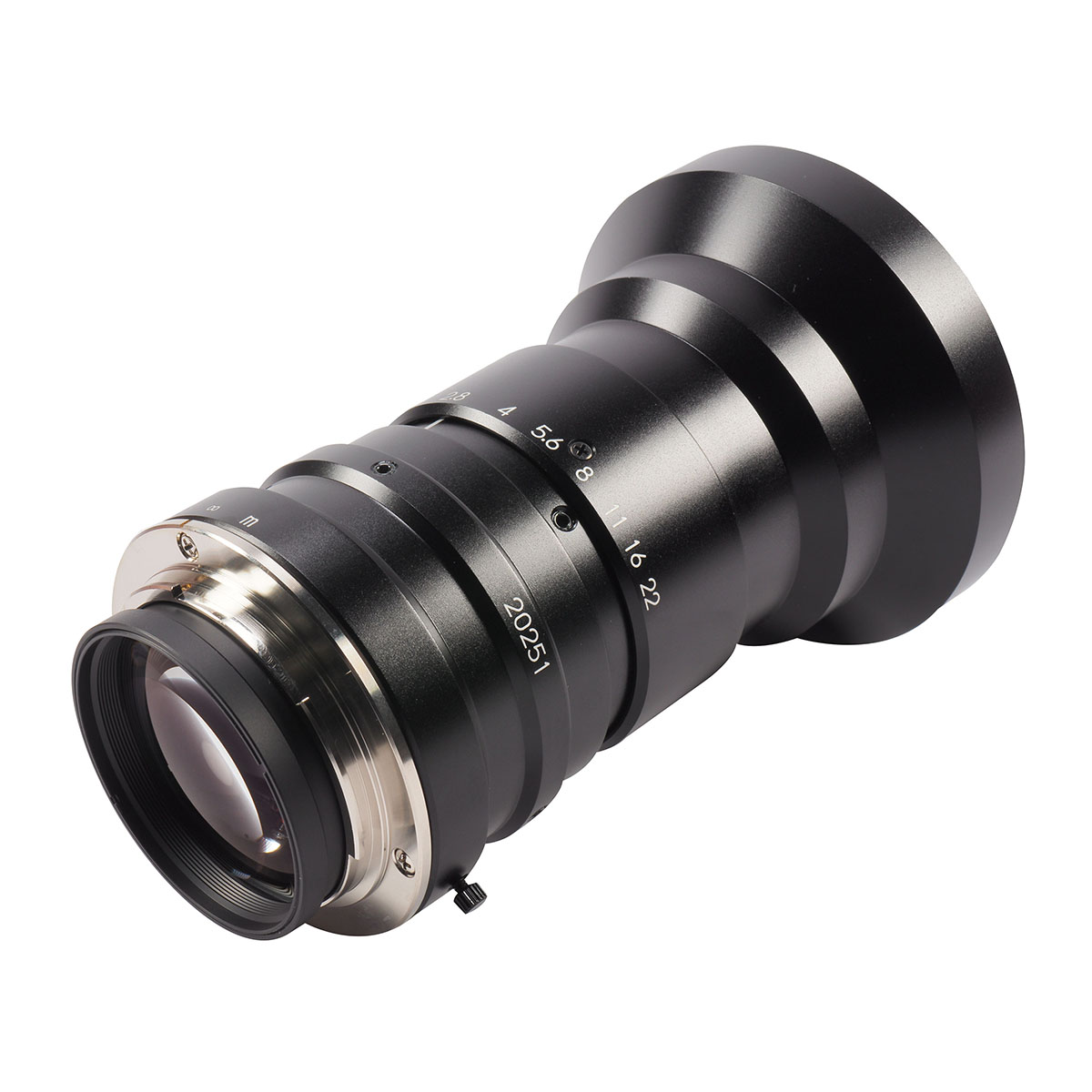

Product Information LM28CLS | 30mm 28mm F-Mount Color Line Scan LensUltra-High-Resolution Nikon F-Mount
Focal length 28mm
Large image circle of 23mm
For sensors with a pixel size from 7.5?m
High-precision aspherical lens
Significantly reduces distortion and produces a high-resolution image
| Pixel size (µm) | 7,5 |
| Iris control | Manual |
| Iris range (f stop) | 2,8 – 22 |
| Lens type | Fixed Focal Lens |
| Wavelength range | VIS (380nm – 780nm) |
| Focusing range (m) | 0,5 – ? |
| Focus control | Manual |
| Resolution center | 200, 80 |
| Resolution corner | 63 |
| Distortion (tv) (%) | -0,1 |
| Filter size (mm) | M72 x P0,75 |
| Size (mm) | ?75 X 108 |
| Weight (g) | 482 |
| Temperature range (?) | -10°C – +50°C |
| Application | Broadcast, Machine Vision |
For more information about the features, visit the Kowa Product Documentation.
