Description
Using image compression mode | Measured at 12VDC

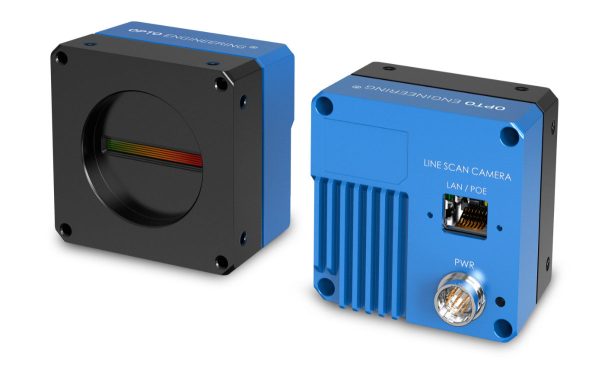

COE-4K-C-POE-010-J
| Specification | Value |
|---|---|
| Resolution | 4096 x 2 |
| Sensor format | 4K |
| Pixel size | 7 (μm) |
| Line length | 28.7 (mm) |
| Sensor model | GL0402 |
| Image mode | – |
| Sensor type | CMOS |
| Shutter | Global |
| Chroma | Color |
| Filter | AR |
| Line rate | 19 (kHz) |
| Max line rate | 80 (kHz) |
| Exposure time | 5 μs – 10 ms |
| ADC resolution | – (bit) |
| Dynamic range | 65.6 (dB) |
| Gain range | 0-10 (dB) |
| SNR | 40.0 (dB) |
| Image buffer | 1024 (MB) |
| Pixel formats | Mono 8/10/12, RGB8, BGR8, Bayer RG 8/10/10Packed/12/12Packed, YUV 422Packed, YUV422_YUYVPacked |
| Chunk data | yes |
| User sets | 3.0 |
| Timers/Counters | 0/1 |
| Synchronization | Free run, software trigger, hardware trigger |
| Data connector | RJ45 |
| Data interface | 1 GigE |
| I/O connector | 12-pin Hirose |
| I/O interface | 4x configurable input and output, supports single-end/differential |
| Serial interface | RS-422, RS-644, TTL&LVTTL |
| Encoder interface | yes |
| Power supply | 12-24, PoE (V) |
| Max power consumption | 6.6 (W) |
| Standards | GigE Vision, GenICam |
| Client software | OECS or other GigEVision software |
| Operating systems | 32/64-bit Windows XP/7/10 |
| Warranty | 1 (years) |
| Mount | M42x1 FD 12 |
| Dimensions | 62 x 62 x 41 (mm) |
| Clamping system | 12x M4 threaded holes (on all sides) |
| Mass | 280 (g) |
| Operating temperature | -20-+50 (°C ) |
| Storage temperature | -30-+80 (°C ) |
| Operating relative humidity | 20-80, non condensing (%) |
| IP rating | IP30 |
Additional information
| Line-rate | 19 (kHz) |
|---|---|
| Gain range | 0-10 (dB) |
| Operating relative humidity | 20-80, non condensing (%) |
| Clamping system | 12x M4 threaded holes (on all sides) |
| Snr | 40.0 (dB) |
| Power supply | 12-24, PoE (V) |
| Sensor model | GL0402 |
| Sensor format | 4K |
| Exposure time | 5 μs – 10 ms |
| Shutter | Global |
| Filter | AR |
| Operating temperature | -20-+50 (°C ) |
| Resolution | 4096 x 2 |
| Max line rate | 80 (kHz) |
| Chroma | Color |
| Data connector | RJ45 |
| Interface | 1 GigE |
| Lens mount | M42x1 FD 12 |
| Mono-color | Color |
| Storage temperature | -30-+80 (°C ) |
| Ip rating | IP30 |
| Max power consumption | 6.6 (W) |
| Dynamic range | 65.6 (dB) |
| Warranty | 1 (years) |
| Pixel size | 7 (μm) |
| Data interface | 1 GigE |
| I/o connector | 12-pin Hirose |
| I/o interface | 4x configurable input and output, supports single-end/differential |
| Encoder interface | yes |
| Image buffer | 1024 (MB) |
| Serial interface | RS-422, RS-644, TTL&LVTTL |
| Client software | OECS or other GigEVision software |
| Mass | 280 (g) |
| Pixel formats | Mono 8/10/12, RGB8, BGR8, Bayer RG 8/10/10Packed/12/12Packed, YUV 422Packed, YUV422_YUYVPacked |
| Dimensions | 62 x 62 x 41 (mm) |
| Operating systems | 32/64-bit Windows XP/7/10 |
| Line length | 28.7 (mm) |
| Image mode | – |
| Chunk data | yes |
| User sets | 3 |
| Mount | M42x1 FD 12 |
| Sensor type | CMOS |
| Standards | GigE Vision, GenICam |
| Timers counters | 0/1 |
| Synchronization | Free run, software trigger, hardware trigger |
| Accessory developer | Opto |
