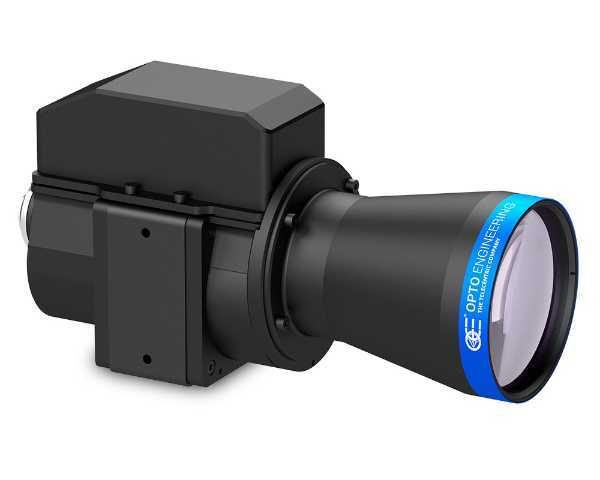

TCZR072S

TCZR072S

Specification Value
Magnification 0.125
0.250
0.500
1.000 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 38.40 x 28.80
19.20 x 14.40
9.60 x 7.20
4.80 x 3.60 (mm x mm)
1/2.5″ 45.60 x 34.24
22.80 x 17.12
11.40 x 8.56
5.70 x 4.28 (mm x mm)
1/2″ 51.20 x 38.40
25.60 x 19.20
12.80 x 9.60
6.40 x 4.80 (mm x mm)
1/1.8″ 57.04 x 42.64
28.52 x 21.32
14.26 x 10.66
7.13 x 5.33 (mm x mm)
2/3″ 68.00 x 56.72
34.00 x 28.36
17.00 x 14.18
8.50 x 7.09 (mm x mm)
Working distance 157.7 (mm)
Working f/N 16
Telecentricity typical (max) < 0.05 (0.10)
< 0.05 (0.10)
< 0.05 (0.10)
< 0.05 (0.10) (deg)
Distortion typical (max) < 0.10 (0.10)
< 0.08 (0.10)
< 0.05 (0.10)
< 0.07 (0.10) (%)
Depth of field 53.00
13.20
3.30
0.80 (mm)
Resolution 81
41
20
10 (μm)
Reference point repeatability < 6
< 5
< 2
< 4 (μm)
Max image displacementbetween magnification changes 350 (μm)
Connector DB15HD male
Number of motors 1
Type Bipolar stepper
RMS winding current 600 (mA)
Winding voltage 24 (V)
Steps per revolution 200
Min. time for magnification change 1.5 (s)
Max time for magnification change 2 (s)
Number of encoders 1
Supply voltage 24 (V)
Maximum supply current 30 (mA)
Type Magnetic rotary, incremental with reference
Output signals A, B, Z (index)
Interfaces RS422
Number of magnetic poles 120
Poles pitch 2 (mm)
Interpolation 500
Pulses per revolution 60000
Motor to encoder ratio 2.56
Mount C
Phase adjustment Yes
Length 279.3 (mm)
Height 142.0 (mm)
Width 100.0 (mm)
Front diameter 100.0 (mm)
Mass 2820 (g)
Operating temperature 0-40 (°C )
Storage temperature 0-50 (°C )
Humidity 10-85 non condensing (%)
IP rating IP20
Installation Indoor use only
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  4. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  5. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  6. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  7. Image side, at 1 σ standard deviation.
  8. Image side.
  9. One magnification step.
  10. Two magnification steps.
  11. 1 encoder pulse = 2.56 motor µsteps (with a 256 microstepping control).
  12. Indicates the availability of an integrated camera phase adjustment feature

Additional information

Lens mount

C
Image circle diameter

11.0 (mm)
Working distance

157.7 (mm)
Working f/N

16
Telecentricity typical (max)

< 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) < 0.05 (0.10) (deg)
Distortion typical (max)

< 0.10 (0.10) < 0.08 (0.10) < 0.05 (0.10) < 0.07 (0.10) (%)
Depth of field

53.00 13.20 3.30 0.80 (mm)
Resolution

81 41 20 10 (μm)
Phase adjustment

Yes
Length

279.3 (mm)
Rms winding current

600 (mA)
Front diameter

100.0 (mm)
Ref point repeatability

< 6 < 5 < 2 < 4 (μm)
Max image shift (zoom)

350 (μm)
Connector

DB15HD male
Number of motors

1
Product type

Magnetic rotary, incremental with reference
Installation

Indoor use only
Accessory developer

Opto
Zoom ratio

0.125 0.250 0.500 1.000 (x)
Mass

2820 (g)
Steps per revolution

200
Poles pitch

2 (mm)
Max zoom switch time

2 (s)
Number of encoders

1
Supply voltage

24 (V)
Maximum supply current

30 (mA)
Output signals

A, B, Z (index)
Interfaces

RS422
Number of magnetic poles

120
Min zoom switch time

1.5 (s)
Pulses per revolution

60000
Winding voltage

24 (V)
Motor to encoder ratio

2.56
Height

142.0 (mm)
Width

100.0 (mm)
Operating temperature

0-40 (°C )
Storage temperature

0-50 (°C )
Humidity

10-85 non condensing (%)
Ip rating

IP20
Interpolation

500
Optmag

0.125 0.250 0.500 1.000 (x)
