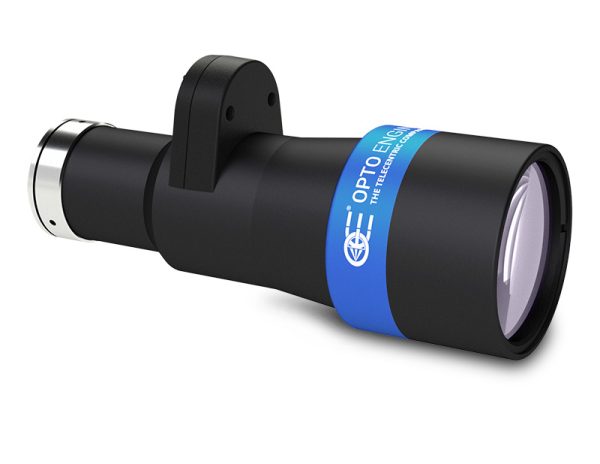

TCEL23036

Specification	Value
Magnification	0.243 (x)
Magnification ranges at -2 dpt to +3 dpt	0.239 – 0.250 (x)
Image circle diameter	11.0 (mm)
Max sensor size	2/3″
1/3″	19.75 x 14.81 (mm x mm)
1/2.5″	23.46 x 17.61 (mm x mm)
1/2″	26.34 x 19.75 (mm x mm)
1/1.8″	29.34 x 21.93 (mm x mm)
2/3″	34.98 x 29.18 (mm x mm)
Working distance	101.5 (mm)
Working distance range	122.9 – 73.2 (mm)
Working distance repeatability	±0.5 (small steps); ±1 (large steps) (mm)
Working f/N	8
Telecentricity typical (max)	< 0.08 (0.1) (deg)
Telecentricity max	< 0.15 (deg)
Distortion typical (max)	< 0.04 (0.1) (%)
Distortion max	< 0.15 (%)
Depth of field	7.00 (mm)
Resolution	21 (μm)
Liquid lens model	Optotune EL-16-40
Temperature sensor	Yes
Focal power mode	Yes
Response time	5 (ms)
Setting time	25 (ms)
Current range	-500 to +500 (mA)
Repeatability using focal power mode	±0.05 (small steps); ±0.1 (large steps) (dpt)
Lifecycles (10%-90% sinusoidal)	>1,000,000,000
Connector	HR10A-7R-6PB
Mount	C
Phase adjustment	Yes
Length	166.4 (mm)
Front diameter	61.0 (mm)
Mass	539 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only

Description

Field of views are calculated at 0 dpt power of the liquid lens.
Working distance (nominal): distance between the front end of the mechanics and the object at 0 pdt power of the liquid lens.
Minimum and maximum working distance are reported at nominal range of the liquid lens; maximum excursion may be larger.
Considering repeatability on the optical power of the liquid lenses over small (±0.05 dpt) and big (±0.1 dpt) steps
Working f-number (wf/N): the real f-number of a lens in operating conditions.
Maximum angle between chief rays and optical axis on the object side, evaluated at 0 dpt power of the liquid lens. Typical (average production) values and maximum (guaranteed) values are listed.
Maximum values calculated in the range -2 to +3 dpt of the liquid lens.
Percent deviation of the real image compared to an ideal, undistorted image, , evaluated at 0 dpt power of the liquid lens. Typical (average production) values and maximum (guaranteed) values are listed.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Object side, calculated with the Rayleigh criterion with λ= 520 nm
Typical at 30°C, 0 to ±250 mA step.
Indicates the availability of an integrated camera phase adjustment feature.
Measured from the front end of the mechanics to the camera flange.

Lens mount	C
Storage temperature	0-50 (°C)
Accessory developer	Opto
Lifecycle (1090% sin)	>1,000,000,000
Zoom ratio	0.243 (x)
Working distance	101.5 (mm)
Working f/N	8
Telecentricity typical (max)	< 0.08 (0.1) (deg)
Distortion typical (max)	< 0.04 (0.1) (%)
Depth of field	7.00 (mm)
Phase adjustment	Yes
Mass	539 (g)
Image circle diameter	11.0 (mm)
Length	166.4 (mm)
Front diameter	61.0 (mm)
Connector	HR10A-7R-6PB
Resolution	21 (μm)
Operating temperature	0-40 (°C)
Temperature sensor	Yes
Focal power repeatability	±0.05 (small steps); ±0.1 (large steps) (dpt)
Current range	-500 to +500 (mA)
Setting time	25 (ms)
Response time	5 (ms)
Focal power mode	Yes
Liquid lens model	Optotune EL-16-40
Installation	Indoor use only
Distortion max	< 0.15 (%)
Telecentricity max	< 0.15 (deg)
Wd repeatability	±0.5 (small steps); ±1 (large steps) (mm)
Zoom range 2dpt to +3dpt	0.239 – 0.250 (x)
Operating relative humidity	20-85, non condensing (%)
Working distance range	122.9 – 73.2 (mm)
Optmag	0.243 (x)
Sensor size
