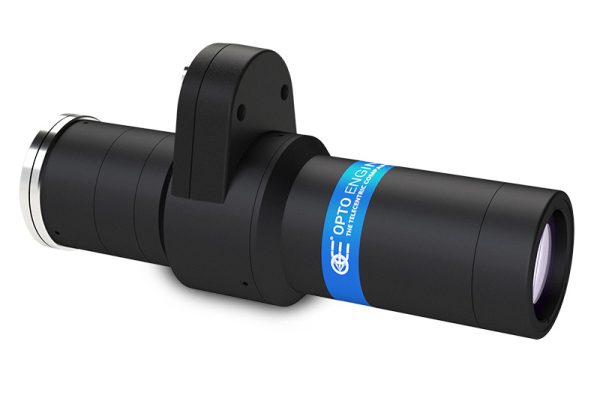

TCEL066

TCEL066

Specification Value
Magnification 0.670 (x)
Magnification ranges at -2 dpt to +3 dpt 0.663 – 0.680 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 7.16 x 5.37 (mm x mm)
1/2.5″ 8.51 x 6.39 (mm x mm)
1/2″ 9.55 x 7.16 (mm x mm)
1/1.8″ 10.64 x 7.96 (mm x mm)
2/3″ 12.69 x 10.58 (mm x mm)
Working distance 132.3 (mm)
Working distance range 146.1 – 112.3 (mm)
Working distance repeatability ±0.35 (small steps); ±0.7 (large steps) (mm)
Working f/N 12
Telecentricity typical (max) < 0.04 (0.08) (deg)
Telecentricity max < 0.15 (deg)
Distortion typical (max) < 0.1 (0.2) (%)
Distortion max < 0.2 (%)
Depth of field 1.40 (mm)
Resolution 11 (μm)
Liquid lens model Optotune EL-16-40
Temperature sensor Yes
Focal power mode Yes
Response time 5 (ms)
Setting time 25 (ms)
Current range -500 to +500 (mA)
Repeatability using focal power mode ±0.05 (small steps); ±0.1 (large steps) (dpt)
Lifecycles (10%-90% sinusoidal) >1,000,000,000
Connector HR10A-7R-6PB
Mount C
Phase adjustment Yes
Length 149.3 (mm)
Front diameter 37.7 (mm)
Mass 408 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Add to Quote
Category: Tag: Brand:

Description

  1. Field of views are calculated at 0 dpt power of the liquid lens.
  2. Working distance (nominal): distance between the front end of the mechanics and the object at 0 pdt power of the liquid lens.
  3. Minimum and maximum working distance are reported at nominal range of the liquid lens; maximum excursion may be larger.
  4. Considering repeatability on the optical power of the liquid lenses over small (±0.05 dpt) and big (±0.1 dpt) steps
  5. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  6. Maximum angle between chief rays and optical axis on the object side, evaluated at 0 dpt power of the liquid lens. Typical (average production) values and maximum (guaranteed) values are listed.
  7. Maximum values calculated in the range -2 to +3 dpt of the liquid lens.
  8. Percent deviation of the real image compared to an ideal, undistorted image, , evaluated at 0 dpt power of the liquid lens. Typical (average production) values and maximum (guaranteed) values are listed.
  9. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  10. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  11. Typical at 30°C, 0 to ±250 mA step.
  12. Indicates the availability of an integrated camera phase adjustment feature.
  13. Measured from the front end of the mechanics to the camera flange.
