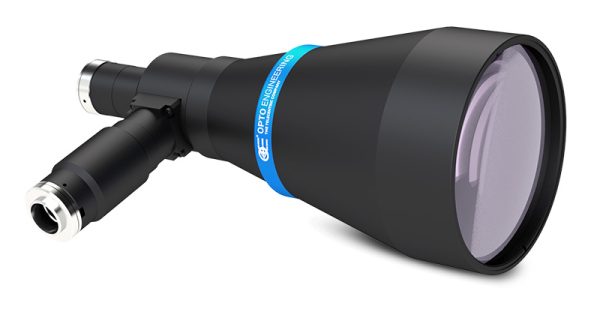

TCDP23C4MC096

TCDP23C4MC096

Specification Value
Magnification 0.093
0.186 (x)
Image circle diameter 11.0
21.6 (mm)
Max sensor size 2/3″
4/3″
1/2″ 68.82 x 51.61
34.41 x 25.81 (mm x mm)
2/3″ 91.40 x 76.24
45.70 x 38.12 (mm x mm)
1″ –
76.29 x 40.38 (mm x mm)
4/3″ –
101.77 x 57.04 (mm x mm)
Working distance 278.6
278.6 (mm)
Working f/N 8
16
Telecentricity typical (max) < 0.06 (0.08)
< 0.05 (0.10) (deg)
Distortion typical (max) < 0.04 (0.08)
< 0.04 (0.10) (%)
Depth of field 47.90
23.90 (mm)
Resolution 55
55 (μm)
Mount C
C
Phase adjustment Yes
Yes
Length 337.5 (mm)
H1 145.2 (mm)
Front diameter 143.0 (mm)
Mass 2821 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. With IMX387 (21.7 mm diagonal) sensors, the FOV of TC4MHRyyy-x lenses may show some vignetting at the image corners.
  2. Working distance: distance between the front end of the mechanics and the object. Set this distance within +/- 3% of the nominal value for maximum resolution and minimum distortion.
  3. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  4. Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
  5. Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
  6. At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
  7. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  8. Indicates the availability of an integrated camera phase adjustment feature.
  9. Measured from the front end of the mechanics to the camera flange.
  10. Right-angled ocular length, measured from the optical axis of the frontal lens to the camera flange

Additional information

Lens mount

C C
Distortion typical (max)

< 0.04 (0.08) < 0.04 (0.10) (%)
Accessory developer

Opto
H1

145.2 (mm)
Zoom ratio

0.093 0.186 (x)
1 2

68.82 x 51.61 34.41 x 25.81 (mm x mm)
2 3

91.40 x 76.24 45.70 x 38.12 (mm x mm)
Working distance

278.6 278.6 (mm)
Working f/N

8 16
Resolution

55 55 (μm)
Telecentricity typical (max)

< 0.06 (0.08) < 0.05 (0.10) (deg)
Depth of field

47.90 23.90 (mm)
Phase adjustment

Yes Yes
Mass

2821 (g)
4 3

– 101.77 x 57.04 (mm x mm)
Image circle diameter

11.0 21.6 (mm)
Length

337.5 (mm)
Front diameter

143.0 (mm)
Optmag

0.093 0.186 (x)
Sensor size
