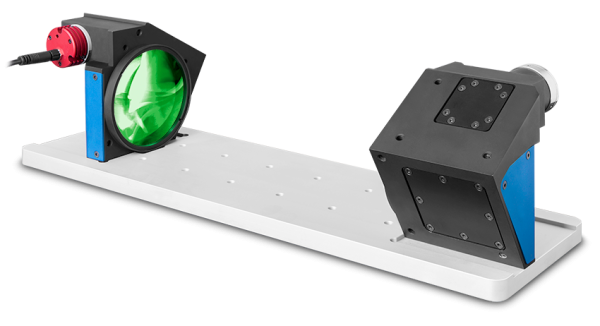

TCCRBENCH064

Specification	Value
Magnification	0.138 (x)
Image shape dimension	Ø=11.5, x=9.5 (Ø, x=mm)
Max sensor size	2/3″
1/3″	34.78 x 26.09 (mm x mm)
1/2.5″	41.30 x 31.01 (mm x mm)
1/2″	46.38 x 34.78 (mm x mm)
1/1.8″	51.67 x 38.62 (mm x mm)
2/3″	61.59 x 51.38 (mm x mm)
Working distance	181.9 (mm)
Working f/N	8
Telecentricity typical (max)	< 0.05 (0.08) (deg)
Distortion typical (max)	< 0.03 (0.10) (%)
Depth of field	21.70 (mm)
Resolution	37 (μm)
Light color, peak wavelength	green, 520 nm
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED voltage	3.3 (4.0) (V)
LED current	350 (mA)
Max pulse current	2000 (mA)
Mount	C
Phase adjustment	Yes
Length	474 (mm)
Width	175 (mm)
Height	134 (mm)
Mass	6549 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Description

Indicates the dimensions and shape of image, where “Ø =” stands for diameter and “x=” indicates the nominal image height and length (Tech Info for related drawing).
Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
Working f-number (wf/N): the real f-number of a lens in operating conditions.
Maximum angle between chief rays and optical axis on the object side. Typical (average production) values and maximum (guaranteed) values are listed.
Percent deviation of the real image compared to an ideal, undistorted image. Typical (average production) values and maximum (guaranteed) values are listed.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Object side, calculated with the Rayleigh criterion with λ= 520 nm
At max forward current. Tolerance is ± 0.06V on forward voltage measurements.
Used in continuous (not pulsed) mode.
At pulse width <= 10 ms, duty cycle <= 10% condition. Built-in electronics board must be bypassed (see tech info).
Maximum width dimension considering illuminator/telecentric side and cable connector end

Lens mount	C
Supply voltage	12-24 (V)
Accessory developer	Opto
Risk group (cei 62471)	Exempt
Zoom ratio	0.138 (x)
Image shape dimension	Ø=11.5, x=9.5 (Ø, x=mm)
Working distance	181.9 (mm)
Working f/N	8
Telecentricity typical (max)	< 0.05 (0.08) (deg)
Distortion typical (max)	< 0.03 (0.10) (%)
Depth of field	21.70 (mm)
Phase adjustment	Yes
Mass	6549 (g)
Resolution	37 (μm)
Length	474 (mm)
Height	134 (mm)
Width	175 (mm)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Light color, peak wavelength	green, 520 nm
Max power consumption	2.5 (W)
Led voltage	3.3 (4.0) (V)
Led current	350 (mA)
Max pulse current	2000 (mA)
Operating relative humidity	20-85, non condensing (%)
Optmag	0.138 (x)
Sensor size
