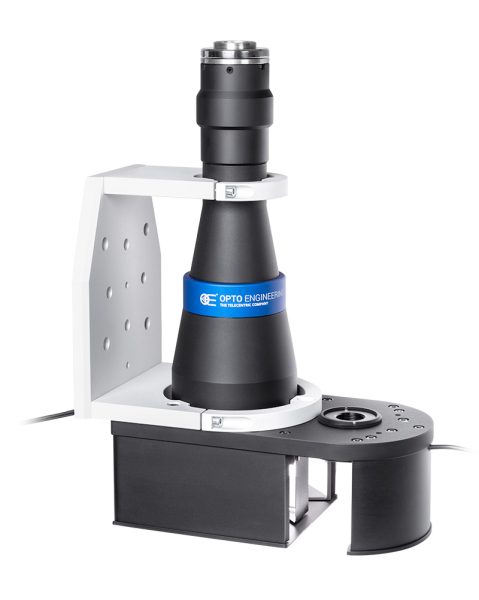

TCCAGE2MHR048-C

Specification	Value
Magnification	0.267 (x)
Sensor size	14.2 x 7.5 (mm x mm)
Min sensor size	1″
Maximum	8.0 x 28.1 (mm x mm)
Working f/N	16
Depth of field	11.60 (mm)
Light color, peak wavelength	white, 6300K
Power supply mode	Continuous, strobe constant current driving
Supply voltage	24 (V)
Max continuous current	280 (mA)
Typical pulse voltage	36 (V)
Max pulse current	3 (A)
Peak power consumption	6.7 (W)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Estimated MTBF	20000 (hours)
Cable length	1 (m)
Connector	Flying leads
Cables	–
Light color, peak wavelength	white, 6300K
Power supply mode	Continuous, strobe constant current driving
Supply voltage	24 (V)
Max continuous current	105 (mA)
Typical pulse voltage	36 (V)
Max pulse current	0.32 (A)
Peak power consumption	2.5 (W)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Estimated MTBF	20000 (hours)
Cable length	1 (m)
Connector	Flying leads
Cables	–
Mount	C
Phase adjustment	Yes
Length	200.8 (mm)
Width	111.0 (mm)
Height	281.0 (mm)
Mass	2229 (g)
Operating temperature	0-40 (°C)
Operating relative humidity	20 – 85, non-condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Exempt

Description

Recommended sensor. Different sensor sizes may generate incomplete images.
Maximum sample diameter in each of the four views and maximum sample height with the recommended sensor.
Working f-number (wf/N): the real f-number of a lens in operating conditions. Lenses with reduced aperture can be supplied on request.
At the limits of the depth of field, the image can still be used for measurements. For a very sharp image, however, only half of the depth of field should be considered. Pixel size used for calculation is 3.45 μm.
Tolerance ± 2%.
Drop to 50% intensity @ 25°C.
Indicates the availability of an integrated camera phase adjustment feature.

Cable length	1 (m)
Width	111.0 (mm)
Optmag	0.267 (x)
Accessory developer	Opto
Maximum	8.0 x 28.1 (mm x mm)
Sensor size	14.2 x 7.5 (mm x mm)
Zoom ratio	0.267 (x)
Working f/N	16
Depth of field	11.60 (mm)
Phase adjustment	Yes
Mass	2229 (g)
Length	200.8 (mm)
Connector	Flying leads
Supply voltage	24 (V)
Height	281.0 (mm)
Operating temperature	0-40 (°C)
Light color, peak wavelength	white, 6300K
Installation	Indoor use only
Max pulse current	0.32 (A)
Operating relative humidity	20 – 85, non-condensing (%)
Risk group (cei 62471)	Exempt
Typical pulse voltage	36 (V)
Peak power consumption	2.5 (W)
Max duty cycle	10 (%)
Max pulse duration	10 (ms)
Cables	–
Power supply mode	Continuous, strobe constant current driving
Max continuous current	105 (mA)
Estimated mtbf	20000 (hours)
Min sensor size	1"
Lens mount	C
Mount	C
