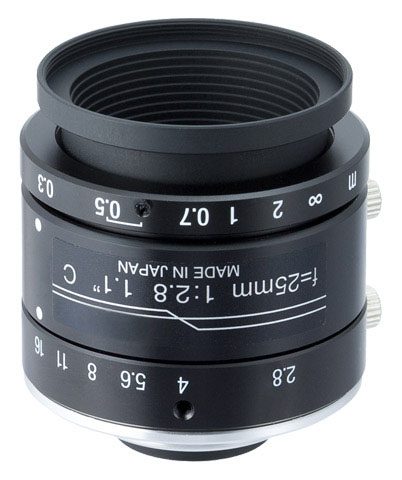

RT-V2528-MPY

RT-V2528-MPY

Specification Value
Focal length 25 (mm)
Magnification 0.087 (x)
Image circle diameter 17.6 (mm)
Max sensor size 1.1″
2/3″ – (deg)
1″ 35.4 (deg)
1.1″ 38.7 (deg)
2/3″ 97.70 x 81.49
1″ 163.10 x 86.32
1.1″ 162.76 x 119.20
Working distance range 0.3 – inf (m)
f/N 2.8 – 16
Back focal length 11.3 (mm)
Distortion on 2/3″ 0.10 (%)
Distortion on 1″ 0.20 (%)
Distortion on 1.1″ 0.30 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M34 x 0.5
Outer diameter 39.5 (mm)
Length 34.0 (mm)
Mass 79 (g)
Set screw thread M2 x 3
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. For RT-V0828-MPY2, with a 1.1 sensor it must be used an RT-VM0811 mount adapter for M72 x 0.75 filter mount. With a 1″ sensor, it could be used an RT-VM0810 mount adapter for M67 x 0.75 filter mount.
  5. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Zoom ratio

0.087 (x)
Optmag

0.087 (x)
Operation power source
Accessory developer

Opto
Distortion on 1 1

0.30 (%)
2 3

97.70 x 81.49
Mass

79 (g)
1 1

162.76 x 119.20 (mm x mm)
Image circle diameter

17.6 (mm)
Length

34.0 (mm)
Focal length

25 (mm)
Working distance range

0.3 – inf (m)
F/n

2.8 – 16
Back focal length

11.3 (mm)
Distortion on 2 3

0.10 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M34 x 0.5
Outer diameter

39.5 (mm)
Set screw thread

M2 x 3
Distortion on 1

0.20 (%)
Color
Focal length (mm)

25 (mm)
Sensor size
