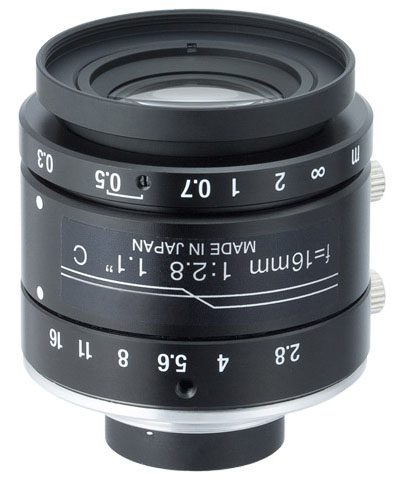

RT-V1628-MPY2

RT-V1628-MPY2

Specification Value
Focal length 16 (mm)
Magnification 0.055 (x)
Image circle diameter 17.6 (mm)
Max sensor size 1.1″
2/3″ 38.2 (deg)
1″ 53.4 (deg)
1.1″ 57.9 (deg)
2/3″ 154.55 x 128.91
1″ 258.00 x 136.55
1.1″ 257.45 x 188.55
Working distance range 0.3 – inf (m)
f/N 2.8 – 16
Back focal length 9.4 (mm)
Distortion on 2/3″ 0.60 (%)
Distortion on 1″ 0.60 (%)
Distortion on 1.1″ 0.50 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M34 x 0.5
Outer diameter 39.5 (mm)
Length 35.3 (mm)
Mass 90 (g)
Set screw thread M2 x 3
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. For RT-V0828-MPY2, with a 1.1 sensor it must be used an RT-VM0811 mount adapter for M72 x 0.75 filter mount. With a 1″ sensor, it could be used an RT-VM0810 mount adapter for M67 x 0.75 filter mount.
  5. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Zoom ratio

0.055 (x)
Optmag

0.055 (x)
Operation power source
Accessory developer

Opto
Distortion on 1 1

0.50 (%)
2 3

154.55 x 128.91
Mass

90 (g)
1 1

257.45 x 188.55 (mm x mm)
Image circle diameter

17.6 (mm)
Length

35.3 (mm)
Focal length

16 (mm)
Working distance range

0.3 – inf (m)
F/n

2.8 – 16
Back focal length

9.4 (mm)
Distortion on 2 3

0.60 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M34 x 0.5
Outer diameter

39.5 (mm)
Set screw thread

M2 x 3
Distortion on 1

0.60 (%)
Color
Focal length (mm)

16 (mm)
Sensor size
