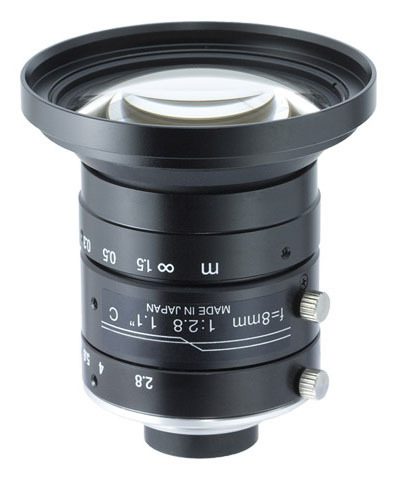

RT-V0828-MPY2

RT-V0828-MPY2

Specification Value
Focal length 8 (mm)
Magnification 0.038 (x)
Image circle diameter 17.6 (mm)
Max sensor size 1.1″
2/3″ 69 (deg)
1″ 89.3 (deg)
1.1″ 93.9 (deg)
2/3″ 223.68 x 186.58
1″ 373.42 x 197.63
1.1″ 372.63 x 272.89
Working distance range 0.2 – inf (m)
f/N 2.8 – 16
Back focal length 8.6 (mm)
Distortion on 2/3″ 2.80 (%)
Distortion on 1″ 1.70 (%)
Distortion on 1.1″ 0.60 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M72 (or M67) x 0.75
Outer diameter 57.5 (mm)
Length 53.2 (mm)
Mass 157 (g)
Set screw thread M2 x 3
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. For RT-V0828-MPY2, with a 1.1 sensor it must be used an RT-VM0811 mount adapter for M72 x 0.75 filter mount. With a 1″ sensor, it could be used an RT-VM0810 mount adapter for M67 x 0.75 filter mount.
  5. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Zoom ratio

0.038 (x)
Optmag

0.038 (x)
Operation power source
Accessory developer

Opto
Distortion on 1 1

0.60 (%)
2 3

223.68 x 186.58
Mass

157 (g)
1 1

372.63 x 272.89 (mm x mm)
Image circle diameter

17.6 (mm)
Length

53.2 (mm)
Focal length

8 (mm)
Working distance range

0.2 – inf (m)
F/n

2.8 – 16
Back focal length

8.6 (mm)
Distortion on 2 3

2.80 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M72 (or M67) x 0.75
Outer diameter

57.5 (mm)
Set screw thread

M2 x 3
Distortion on 1

1.70 (%)
Color
Focal length (mm)

8 (mm)
Sensor size
