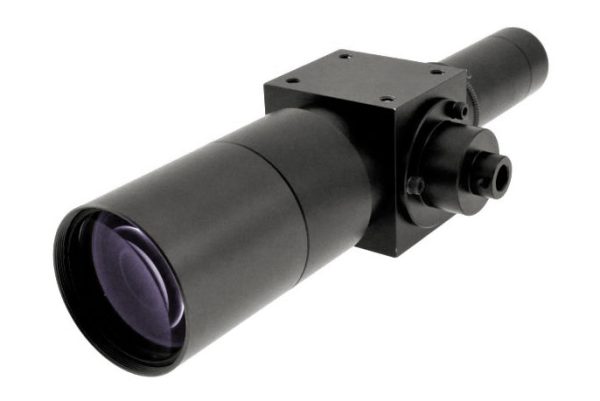

RT-TCL0300-F

RT-TCL0300-F

Specification Value
Magnification 0.300 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 16.00 x 12.00 (mm x mm)
1/2.5″ 19.00 x 14.27 (mm x mm)
1/2″ 21.33 x 16.00 (mm x mm)
1/1.8″ 23.77 x 17.77 (mm x mm)
2/3″ 28.33 x 23.63 (mm x mm)
Working distance 108.2 (mm)
Working f/N 8-40
Distortion < 0.03 (%)
Depth of field 3.20 (mm)
Resolution 17.9 (μm)
Mount C
Phase adjustment No
Length 224.4 (mm)
Front diameter 49.0 (mm)
Mass 620 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Length

224.4 (mm)
Operation power source
Color
Accessory developer

Opto
Distortion

< 0.03 (%)
Front diameter

49.0 (mm)
Image circle diameter

11.0 (mm)
Resolution

17.9 (μm)
Mass

620 (g)
Phase adjustment

No
Depth of field

3.20 (mm)
Working f/N

8-40
Working distance

108.2 (mm)
Zoom ratio

0.300 (x)
Optmag

0.300 (x)
Sensor size
