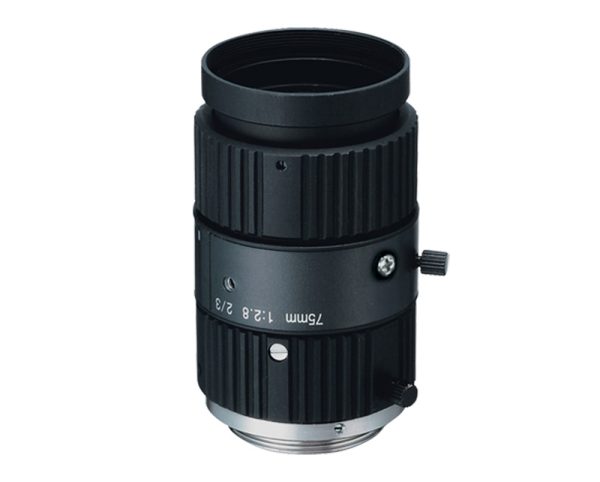

RT-M7528-MP

RT-M7528-MP

Specification Value
Focal length 75 (mm)
Magnification 0.213 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ – (deg)
1/2″ 6.2 (deg)
2/3″ 8.5 (deg)
1/3″ –
1/2″ 30.05 x 22.54
2/3″ 39.91 x 33.29
Working distance range 0.3 – inf (m)
f/N 2.8 – 16
Back focal length 21.5 (mm)
Distortion on 1/3″ – (%)
Distortion on 1/2″ 0.22 (%)
Distortion on 2/3″ 0.43 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M30.5 x 0.5
Outer diameter 35.0 (mm)
Length 57.8 (mm)
Mass 113 (g)
Set screw thread M2 x 3.7
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Zoom ratio

0.213 (x)
Optmag

0.213 (x)
Operation power source
Accessory developer

Opto
Set screw thread

M2 x 3.7
Mass

113 (g)
Image circle diameter

11.0 (mm)
Length

57.8 (mm)
Focal length

75 (mm)
Working distance range

0.3 – inf (m)
F/n

2.8 – 16
Back focal length

21.5 (mm)
Distortion on 1 3

– (%)
Distortion on 1 2

0.22 (%)
Distortion on 2 3

0.43 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M30.5 x 0.5
Outer diameter

35.0 (mm)
Color
Focal length (mm)

75 (mm)
Sensor size
