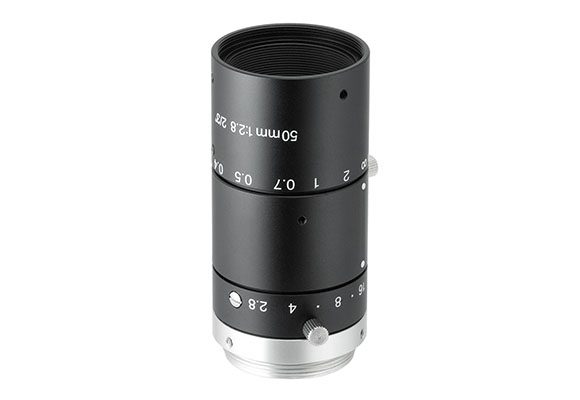

RT-M5028-MPW3

RT-M5028-MPW3

Specification Value
Focal length 50 (mm)
Magnification 0.137 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/2.5″ 8.1 (deg)
1/1.8″ 10.2 (deg)
2/3″ 12.5 (deg)
1/2.5″ 41.61 x 31.24
1/1.8″ 52.04 x 38.91
2/3″ 62.04 x 51.75
Working distance range 0.3 – inf (m)
f/N 2.8 – 16
Back focal length 26.3 (mm)
Distortion on 1/2.5″ 0.00 (%)
Distortion on 1/1.8″ 0.00 (%)
Distortion on 2/3″ 0.00 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M27 x 0.5
Outer diameter 29.0 (mm)
Length 56.0 (mm)
Mass 65 (g)
Set screw thread M1.7 x 3.5
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

C
Zoom ratio

0.137 (x)
Optmag

0.137 (x)
Operation power source
Accessory developer

Opto
Distortion on 1 1 8

0.00 (%)
1 2 5

41.61 x 31.24
1 1 8

52.04 x 38.91 (mm x mm)
Mass

65 (g)
Image circle diameter

11.0 (mm)
Length

56.0 (mm)
Focal length

50 (mm)
Working distance range

0.3 – inf (m)
F/n

2.8 – 16
Back focal length

26.3 (mm)
Distortion on 2 3

0.00 (%)
Iris control

Manual
Focus control

Manual
Filter thread

M27 x 0.5
Outer diameter

29.0 (mm)
Set screw thread

M1.7 x 3.5
Distortion on 1 2 5

0.00 (%)
Color
Focal length (mm)

50 (mm)
Sensor size
