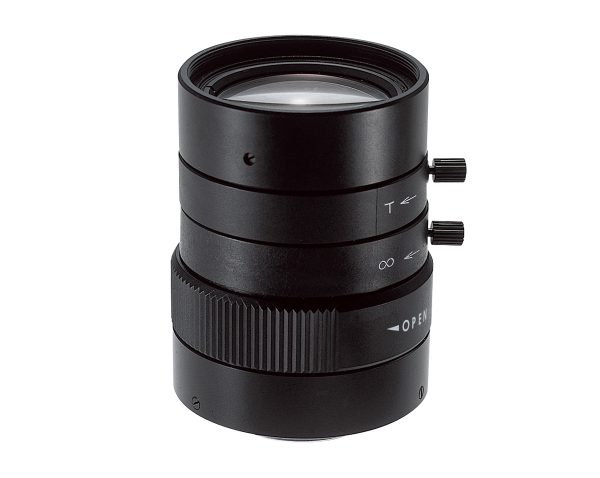

RT-M3Z1228C-MP

RT-M3Z1228C-MP

Specification Value
Focal length 12
36 (mm)
Magnification 0.220
0.183 (x)
Image circle diameter 11.0
11.0 (mm)
Max sensor size 2/3″
2/3″
1/3″ 28.3
9.4 (deg)
1/2″ 37.5
12.5 (deg)
2/3″ 50.4
16.8 (deg)
1/3″ 21.82 x 16.36
26.23 x 19.67
1/2″ 29.09 x 21.82
34.97 x 26.23
2/3″ 38.64 x 32.23
46.45 x 38.74
Working distance range 0.05 – inf
0.2 – inf (m)
f/N 2.8 – 16
2.8 – 16
Back focal length 14.7
13.5 (mm)
Distortion on 1/2″ 1.90
1.70 (%)
Distortion on 2/3″ 2.60
3.50 (%)
Iris control Manual
Manual
Focus control Manual
Manual
Mount C
Filter thread M35.5 x 0.5
Outer diameter 41.6 (mm)
Length 53 (mm)
Mass 105 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Calculated at minimum object distance.
  2. Working distance: distance between the front end of the mechanics and the object.
  3. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  4. Measured from the front end of the mechanics to the camera flange at infinite focusing.

Additional information

Lens mount

C
Distortion on 2 3

2.60 3.50 (%)
Optmag

0.220 0.183 (x)
Operation power source
Accessory developer

Opto
Outer diameter

41.6 (mm)
Filter thread

M35.5 x 0.5
Focus control

Manual Manual
Iris control

Manual Manual
Distortion on 1 2

1.90 1.70 (%)
Zoom ratio

0.220 0.183 (x)
Back focal length

14.7 13.5 (mm)
F/n

2.8 – 16 2.8 – 16
Working distance range

0.05 – inf 0.2 – inf (m)
Focal length

12 36 (mm)
Length

53 (mm)
Image circle diameter

11.0 11.0 (mm)
Mass

105 (g)
Color
Focal length (mm)

12 36 (mm)
Sensor size
