Description
- ± 15% at minimum working distance
- Tolerance ± 2%
- Constant voltage power supply
- Constant current power supply

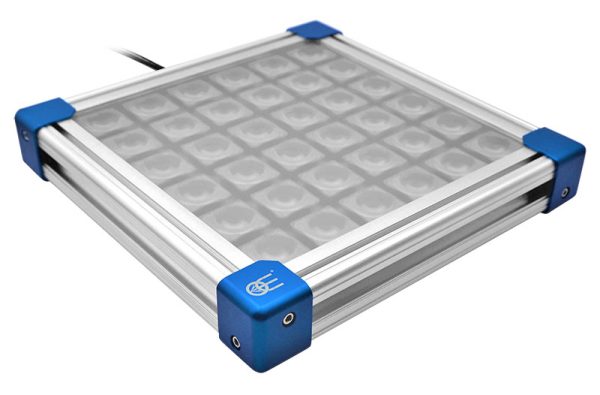

RT-HBQ3-160-6-W-24V
| Specification | Value |
|---|---|
| Illumination area width | 158 (mm) |
| Illumination area height | 158 (mm) |
| Optimal working distance | 350-550 (mm) |
| Number of LEDs | 36 |
| Light color, peak wavelength | white, 6300 K |
| Illuminance | 11400 (lux) |
| Supply voltage | 24 (V) |
| Current | 610 (mA) |
| Power consumption | 14.6 (W) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 1830 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | M12, 5 pins, male |
| Cable length | 700 (mm) |
| Cables | 3 m extension cable, M12 5 pin female to flying leads |
| Length | 197.0 (mm) |
| Width | 197.0 (mm) |
| Height | 31.0 (mm) |
| Mass | 1500 (g) |
| Operating temperature | 0-60 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Additional information
| Cable length | 700 (mm) |
|---|---|
| Operation power source | 610 (mA) |
| Max pulse current | 1830 (mA) |
| Light color, peak wavelength | white, 6300 K |
| Accessory developer | Opto |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Length | 197.0 (mm) |
| Connector | M12, 5 pins, male |
| Supply voltage | 24 (V) |
| Height | 31.0 (mm) |
| Width | 197.0 (mm) |
| Operating temperature | 0-60 (°C) |
| Color | white, 6300 K |
| Operating relative humidity | 20-85, non condensing (%) |
| Mass | 1500 (g) |
| Risk group (cei 62471) | Exempt |
| Illumination area height | 158 (mm) |
| Number of leds | 36 |
| Illuminance | 11400 (lux) |
| Current | 610 (mA) |
| Power consumption | 14.6 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Cables | 3 m extension cable, M12 5 pin female to flying leads |
| Optimal working distance | 350-550 (mm) |
| Illumination area width | 158 (mm) |
| Lighting area (mm) | 158 (mm) x 158 (mm) |
