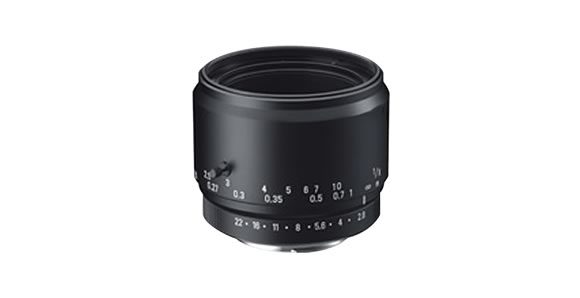

RT-FL-YFL5028

RT-FL-YFL5028

Specification Value
Focal length 50 (mm)
Image circle diameter 45 (mm)
Max sensor size 35 mm Full Frame
Full Frame 47.6 (deg)
Working distance range 0.25 – inf (m)
f/N 2.8 – 22
Back focal length 36.2 (mm)
Distortion – (%)
Iris control Manual
Focus control Manual
Mount F
Filter thread M62 x 0.75
Outer diameter 72.0 (mm)
Length 56.8 (mm)
Mass 440 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Percent deviation of the real image compared to an ideal, undistorted image.
  3. Measured from the front end of the mechanics to the camera flange at infinity focus.

Additional information

Lens mount

F
F/n

2.8 – 22
Operation power source
Accessory developer

Opto
Outer diameter

72.0 (mm)
Filter thread

M62 x 0.75
Focus control

Manual
Iris control

Manual
Back focal length

36.2 (mm)
Focal length

50 (mm)
Working distance range

0.25 – inf (m)
Full frame

47.6 (deg)
Distortion

– (%)
Length

56.8 (mm)
Image circle diameter

45 (mm)
Mass

440 (g)
Color
Focal length (mm)

50 (mm)
Sensor size
