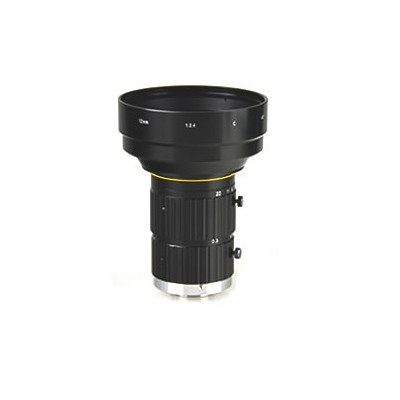

RT-A-1224MX5M

RT-A-1224MX5M

Specification Value
Focal length 12 (mm)
Image circle diameter 22.0 (mm)
Max sensor size 4/3″
4/3″ 86.1 (deg)
Working distance range 0.3 – inf (m)
f/N 2.4 – 32
Back focal length 21.9 (mm)
Distortion on 4/3″ 4.00 (%)
Iris control Manual
Focus control Manual
Mount C
Filter thread M77 x 0.75
Outer diameter 80.0 (mm)
Length 104.4 (mm)
Mass 670 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Value calculated at the corner point of the sensor diagonal. For distortion graphs see datasheet
  3. Measured from the front end of the mechanics to the camera flange at infinite focusing.

Additional information

Lens mount

C
F/n

2.4 – 32
Color
Accessory developer

Opto
Distortion on 4 3

4.00 (%)
Outer diameter

80.0 (mm)
Filter thread

M77 x 0.75
Focus control

Manual
Iris control

Manual
Back focal length

21.9 (mm)
Working distance range

0.3 – inf (m)
Focal length

12 (mm)
Length

104.4 (mm)
Image circle diameter

22.0 (mm)
Mass

670 (g)
Operation power source
Focal length (mm)

12 (mm)
Sensor size
