Description
| Ordernumber | 106002 |
| Select Linescan Specifications | raL12288-66km(camera – fs_id:7459)(cameraspecs_linescan – fs_id:7460) |
| Features | User-Defined Values,Gain Auto,Remove Parameter Limits,Gamma Correction,Exposure Auto,Device Temperature,Auto Function Profile,Debouncer,Black Level,Device Information Parameters,Triggered by Software,User Sets (Configuration Sets),Lookup Table (LUT),Image ROI (Region of Interest),Test Images,Gain,Binning |

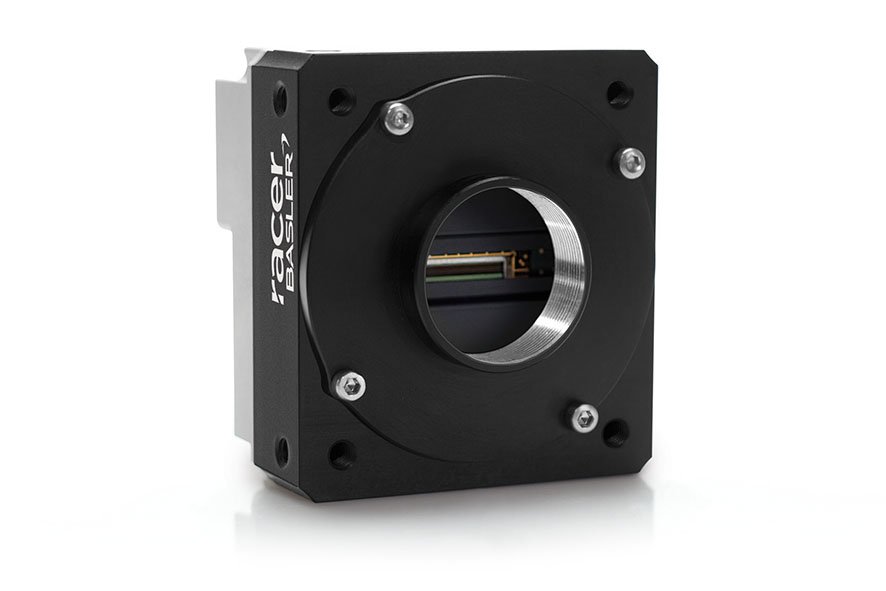

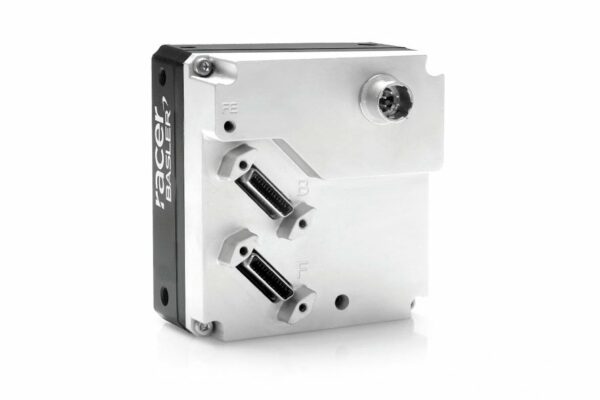

| Camera | raL12288-66km(camera – fs_id:7459) |
| Resolution (horizontal) (pixels) | 12288 |
| Resolution (vertical) (pixels) | 1 |
| Sensor shutter | Global Shutter |
| Sensor Type | CMOS |
| Sensor width (mm) | 43 |
| Pixel Size (horizontal) (µm) | 3.5 |
| Pixel Size (vertical) (µm) | 3.5 |
| Video Output Type | Camera Link (full) |
| Pixel Depth (bits) | 8/10/12 |
| Camera Link Clock (MHz) | 32.5/48/65/83.5 |
| Synchronization | software trigger,hardware trigger,free-run |
| Exposure Control | trigger width or timed |
| Digital Input Description | via CL (max. 4 I/O’s total) |
| Digital Output Description | via CL (max. 4 I/O’s total) |
| Power Requirements | 12-24 VDC |
| Power Consumption (typical) (W) | 6.5 |
| Housing | Box |
| Housing Size L (mm) | 34 |
| Housing Size W (mm) | 56 |
| Housing Size H (mm) | 62 |
| Housing Temperature min (°C) | 0 |
| Housing Temperature max (°C) | 50 |
| Weight (typical) (g) | 210 |
| EMVA Quantum Efficiency (typical) (%) | 54.96 |
| Dark Noise (typical) (e¯) | 7.2 |
| Saturation Capacity (typical) (ke¯) | 21.2 |
| Dynamic Range (typical) (dB) | 69.3 |
| Signal- to -Noise Ratio (dB) | 43.2 |
| Conformity | CE,RoHS,GenICam,IP30,UL,FCC,Camera Link,KC,EAC |
For more information about the features, visit the Basler Product Documentation.
