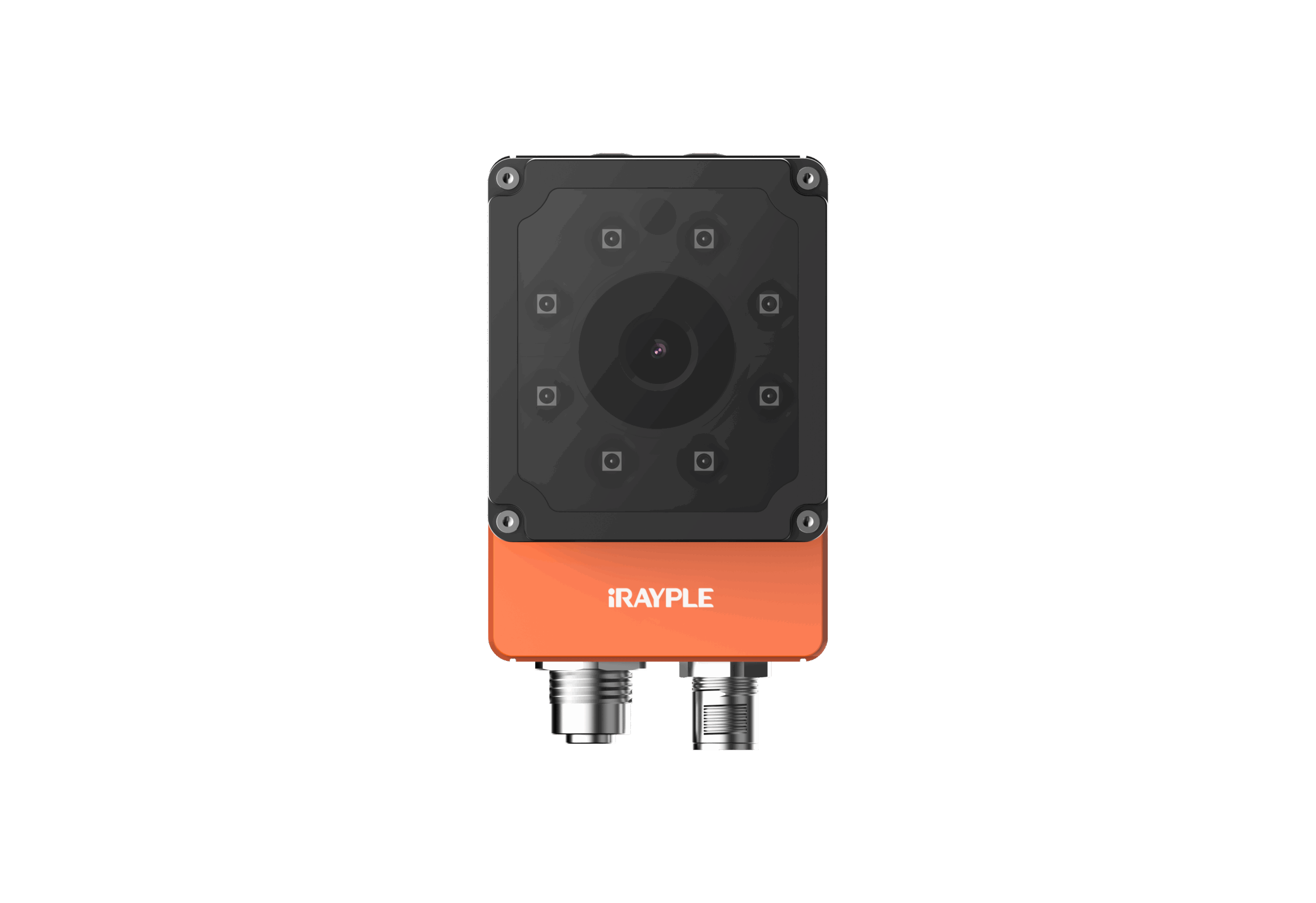

R5016MG-16M-WGG01E

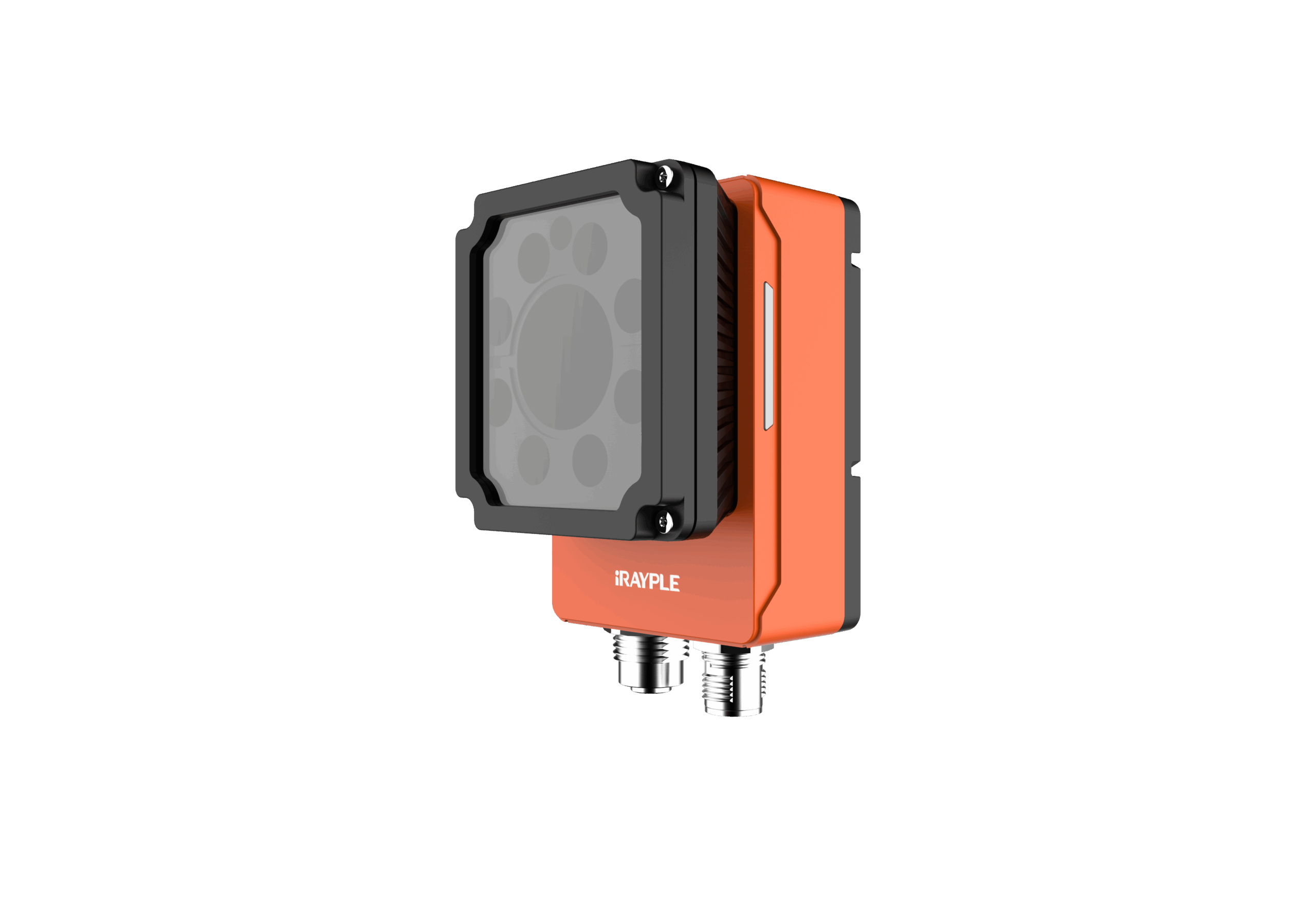

R5016MG-16M-WGG01E - Image 2

R5016MG-16M-WGG01E

Resolution 1440 × 1080
Max. Frame rate 60 fps
Shutter Mode Global
Mono/Color Mono
Lens Mount M12, auto focus
Trigger Mode Software trigger/External trigger/Free run modes
Certifications CE, KC
Function lD: Code 39/Code 93/Code128/CodaBar/EAN8/EAN13/UPCA/UPCE/ITF25/2of5（Industrial2of5）/standard25/GS1-128 etc. and 2D: Data Matrix/MQR/GS1 DM/GS1QR etc.; Quality Evaluation: ISO/IEC 29158(AIM-DPM), ISO/IEC 15415, ISO/IEC 15416）
Focal Length 16 mm
Working Distance 80-1500 mm
Field of View (FOV) 61×46 mm@WD200 mm
Max. Read Speed 90 codes/s
Max. Operating Speed 3 m/s
Min. Resolution 1D code 0.04 mm/ 2D code 0.04 mm
Light Source Type White
Connector 2 Industrial connectors support GigE and GPIO
Network Port GigE
GPIO Interface RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Communication Mode RS232, Ethernet
Communication protocol SDK, TCP Client, TCP Server, FTP, RS232, Profinet、Modbus、EtherNet/IP、MC(SLMP)、FINS/UDP、FINS/TCP
LED Indicator Power,Ethernet,Status,Result
Power Supply 9~26VDC, 2A input, suitable for industrial environment
Power Consumption <18 W(light included)
Product Dimensions 82 mm×55 mm×53 mm(not including connector)
Net Weight ＜350 g
Protection IP65
Casing Material Aluminum alloy + Front cover
Operating Temperature -20℃～+50℃
Operating Humidity 20%～95%(no condensation)
Storage Temperature -30℃～+70℃
Add to Quote
Category: Tag: Brand:

Description

  • Light-integrated design makes red/white/blue illumination optional, support control separately
  • Support different focal lengths, electrical auto focus and one-click auto training
  • GigE interface, IP65 protection level
  • Abundant IO interfaces such as Ethernet, RS232, GPIO, support multiple communication protocols
  • Support various code formats and evaluations of code quality
  • Built-in deep-learning algorithms and multi-parameters polling to ensure effects of complex applications

Dimensions

Downloads

R5016MG_16M_WGG01E_Datasheet_2025-10-16.pdf
55×82×53_5000_2DK_3D_V4.0.rar
EasyID_2.3.5_Build20250702.zip?response-content-disposition=attachment;filename=Machine%2BVision%2BEasyID%2BClient%2BVer2.3.5%2528Windows%2529.zip

Additional information

Connector

2 Industrial connectors support GigE and GPIO
Field of view

61×46 mm@WD200 mm
Gpio interface

RS232, 2 Opto-isolated inputs and 3 Opto-isolated outputs
Lens mount

M12, auto focus
Power consumption

<18 W(light included)
Power supply

9~26VDC, 2A input, suitable for industrial environment
Resolution

1440 x 1080
Storage temperature

-30℃~+70℃
Trigger mode

Software trigger/External trigger/Free run modes
Working distance

80-1500 mm
Mono-color

Mono
Max. frame rate

60 fps
Shutter mode

Global
Certifications

CE，KC
Function
Light source type

White
Max. read speed

90 codes/s
Max. operating speed

3 m/s
Min. resolution

1D code 0.04 mm/ 2D code 0.04 mm
Network port

GigE
Communication mode

RS232, Ethernet
Communication protocol

SDK，TCP Client，TCP Server，FTP，RS232，Profinet、Modbus、EtherNet/IP、MC（SLMP）、FINS/UDP、FINS/TCP
Led indicator

Power,Ethernet,Status,Result
Protection

IP65
Casing material

Aluminum alloy + Front cover
Operating humidity

20%~95%(no condensation)
