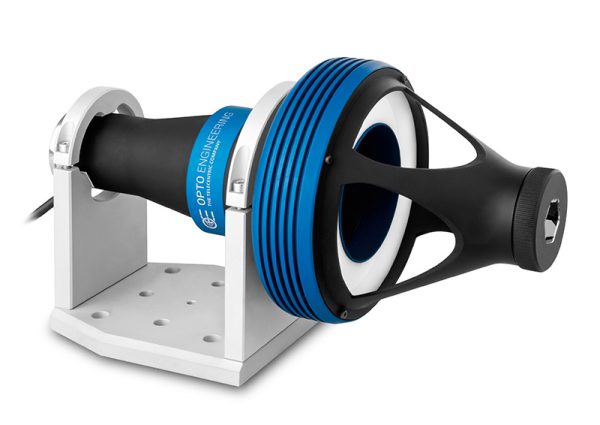

PCMP012

PCMP012

Specification Value
Image circle diameter 4.8 (mm)
Min sensor size 1/2″
Minimum 2.5 x 6.0 (mm x mm)
Maximum 10.0 x 1.0 (mm x mm)
Working distance with minimum object 5.0 (mm)
Working distance with maximum object 1.5 (mm)
Angle of view 37 (deg)
Working f/N 8
Light color, peak wavelength white, 6000 K
Number of LEDs 12
Supply voltage 24 (V)
Current 750 (mA)
Power consumption 18 (W)
Estimated MTBF > 50000 (hours)
Cable length 1.5 (m)
Connector flying leads
Risk group according to CEI EN 62471:2010 Exempt
Mount C
Length 242.3 (mm)
Width 119.0 (mm)
Height 139.5 (mm)
Mass 1485 (g)
Operating temperature 0-40 (°C)
Storage temperature 0-50 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Tolerance ± 2%.
  4. With constant driving voltage.
  5. Drop to 50% intensity @ 25°C.
  6. Measured from the front end of the mechanics to the camera flange.

Additional information

Cable length

1.5 (m)
Storage temperature

0-50 (°C)
Lens mount

C
Operation power source
Accessory developer

Opto
Angle of view

37 (deg)
Working f/N

8
Mass

1485 (g)
Image circle diameter

4.8 (mm)
Length

242.3 (mm)
Connector

Flying leads
Supply voltage

24 (V)
Height

139.5 (mm)
Width

119.0 (mm)
Operating temperature

0-40 (°C)
Installation

Indoor use only
Light color, peak wavelength

white, 6000 K
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Number of leds

12
Current

750 (mA)
Power consumption

18 (W)
Estimated mtbf

> 50000 (hours)
Min sensor size

1/2"
Minimum

2.5 x 6.0 (mm x mm)
Maximum

10.0 x 1.0 (mm x mm)
Wd (min object)

5.0 (mm)
Wd (max object)

1.5 (mm)
Color
Mount

C
