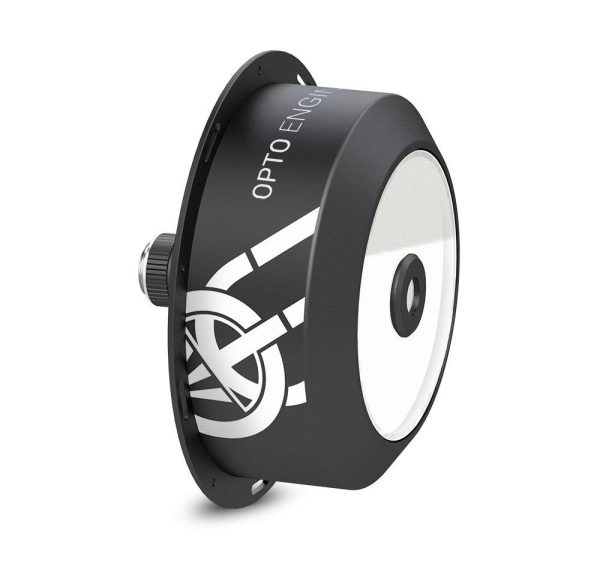

PCCDL

PCCDL

Specification Value
Image circle diameter 4.8 -10 (mm)
Min sensor size 1/2″ – 1.1″
Minimum 10.0 x 1.7 (mm x mm)
Medium 50.0 x 38.3 (mm x mm)
Maximum 110.0 x 1.4 (mm x mm)
Working distance with minimum object 76.1 (mm)
Working distance with medium object 9.0 (mm)
Working distance with maximum object 0.0 (mm)
Angle of view 35 (deg)
f/N 2.8 – C
Mount C
Diameter 215.0 (mm)
Length 129.5 (mm)
Mass 1984 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. For the complete information about the inspectable field of view, see the datasheet of the objective
  2. The maximum inspectable field of view is given considering zero working distance. Depending on the application, a working distance greater than zero will decrease the height of the inspectable object accordingly.
  3. Working distance: distance between the front end of the mechanics and the object.
  4. The f-number could be changed using the variable iris.
  5. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C
Wd (max object)

0.0 (mm)
Operation power source
Accessory developer

Opto
Wd (med object)

9.0 (mm)
Medium

50.0 x 38.3 (mm x mm)
Diameter

215.0 (mm)
Angle of view

35 (deg)
Wd (min object)

76.1 (mm)
Mass

1984 (g)
Maximum

110.0 x 1.4 (mm x mm)
Minimum

10.0 x 1.7 (mm x mm)
Min sensor size

1/2" – 1.1"
F/n

2.8 – C
Length

129.5 (mm)
Image circle diameter

4.8 -10 (mm)
Color
