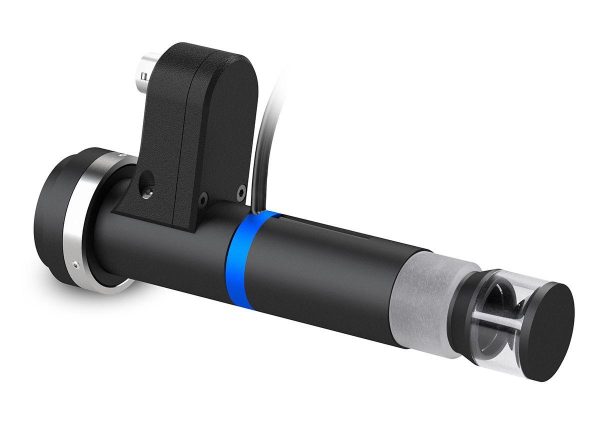

PCBP023-AF

Specification	Value
Image circle diameter	7.0 (mm)
Min sensor size	2/3″
Minimum	25.0 x 11.0 (mm x mm)
Maximum	inf x inf (mm x mm)
Angle of view	60 (deg)
Working f/N	18
Focusing	Liquid lens
Light color	white (nm)
Supply voltage	24 (V)
Current	40 (mA)
Power consumption	1.0 (W)
Typical pulse voltage	40 (V)
Max pulse current	100 (mA)
Peak power consumption	4 (W)
Max pulse duration	1 (ms)
Max duty-cycle	1.5 (%)
Liquid lens model	Optotune EL-3-10
Temperature sensor	Yes
Focal power mode	Yes
Response time	1 (ms)
Setting time	4 (ms)
Current range	-120 to +120 (mA)
Lifecycles (10%-90% sinusoidal)	>1,000,000,000
Connector	HR10A-7R-6PB
Mount	C
Phase adjustment	Yes
Total length	114.0 (mm)
Probe length	80.1 (mm)
Probe diameter	21 (mm)
Mass	86 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 1

Description

Lens mount	C
Risk group (cei 62471)	Risk group 1
Connector	HR10A-7R-6PB
Supply voltage	24 (V)
Operating temperature	0-40 (°C)
Working f/N	18
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Peak power consumption	4 (W)
Phase adjustment	Yes
Current	40 (mA)
Power consumption	1.0 (W)
Typical pulse voltage	40 (V)
Probe diameter	21 (mm)
Accessory developer	Opto
Operation power source
Mass	86 (g)
Image circle diameter	7.0 (mm)
Max pulse current	100 (mA)
Minimum	25.0 x 11.0 (mm x mm)
Focusing	Liquid lens
Focal power mode	Yes
Response time	1 (ms)
Setting time	4 (ms)
Current range	-120 to +120 (mA)
Lifecycle (1090% sin)	>1,000,000,000
Liquid lens model	Optotune EL-3-10
Installation	Indoor use only
Maximum	inf x inf (mm x mm)
Max pulse duration	1 (ms)
Angle of view	60 (deg)
Light color	white (nm)
Total length	114.0 (mm)
Probe length	80.1 (mm)
Min sensor size	2/3"
Max duty cycle	1.5 (%)
Temperature sensor	Yes
