Description

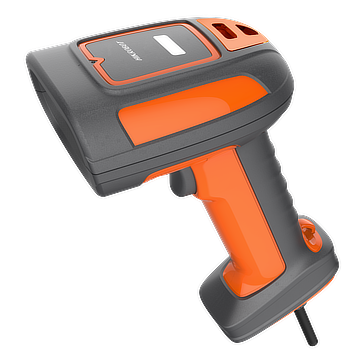

| Type | 1MP 7mm-SR USB Industrial Handheld Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Pixel size | 3 µm × 3 µm |
| Sensor size | 1/4″ |
| Resolution | 1280 × 800 |
| Focal length | 6.7 mm |
| Lens mount | M5.8-mount |
| Field of view | Horizontal 31°, vertical 20° |
| Communication protocol | SmartSDK, USB (HID/CDC) |
| Light source | Direct: white LED; diffused reflection: red LED |
| Interface | USB2.0, DC terminal |
| Power supply | USB2.0: 5 VDC, DC csatlakozó: VDC: 12 VDC és 24 VDC között |
| Max. power consumption | USB2.0: 4.6 W@5 VDC, DC terminal: 6 W@24 VDC |
| Dimension | 73.4 mm × 104 mm × 229.5 mm (2.9″ × 4.1″ × 9.0″) |
| Weight | 460g |
| Ingress protection | IP65 |
| Temperature | Working temperature: -20 °C to 50 °C (-4 °F to 122 °F) storage temperature: -30 °C to 70 °C (-22 °F to 158 °F) |
| Client software | IDMVS |
| Certification | CE |
For more information about the features, visit the Hikrobot Product Documentation.
