Description

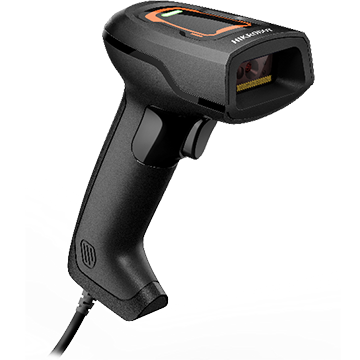

| Type | Enterprise USB-Wired Handheld Code Reader |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, UPCA, and UPCE 2-dimensional codes: QR Code, Data Matrix, Micro QR Code, and Aztec Stacked codes: PDF417 |
| Pixel size | 3.74 µm × 3.74 µm |
| Sensor size | 1/6″ |
| Resolution | 640 × 480 |
| Focal length | 3.1 mm |
| Lens mount | M5.0-mount |
| Field of view | Horizontal 42°, vertical 32° |
| Communication protocol | SmartSDK, USB (HID/CDC) |
| Light source | Green LED |
| Interface | USB2.0 |
| Power supply | 5 VDC |
| Max. power consumption | 2.5 W@5 VDC |
| Dimension | 66.5 mm × 94 mm × 169.5 mm |
| Weight | 160g |
| Ingress protection | IP42 |
| Temperature | -20-55 |
| Client software | IDMVS |
| Certification | CE, KC, RoHS |
For more information about the features, visit the Hikrobot Product Documentation.
