Description

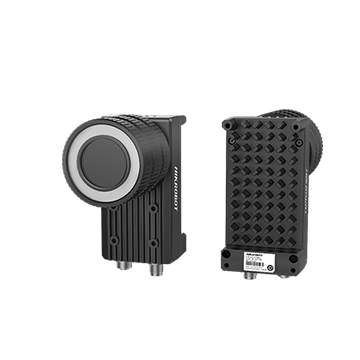

| Type | 12MP Logisitc Code Reader |
| Symbologies | 1D codes: Code 39, Code 128, Code 93, ITF 14, ITF 25, CodaBar, EAN 8, EAN 13, UPCA, UPCE 2D codes: QR Code, Data Matrix |
| Max. reading speed | 84 codes/sec |
| Pixel size | 3.2 μm × 3.2 μm |
| Sensor size | 1″ |
| Resolution | 4096 × 3072 |
| Exposure time | 16 μs to 1 sec |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP |
| Lens Mount | C-mount |
| Not included | Not included |
| Interface | GigE |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 12 W@24 VDC |
| Dimension | 126 mm × 66 mm × 113.2 mm |
| Weight | 750g |
| Ingress protection | IP67 |
| Temperature | 0-50 |
| Client software | IDMVS |
| Certification | CE, RoHS |
For more information about the features, visit the Hikrobot Product Documentation.
