Description

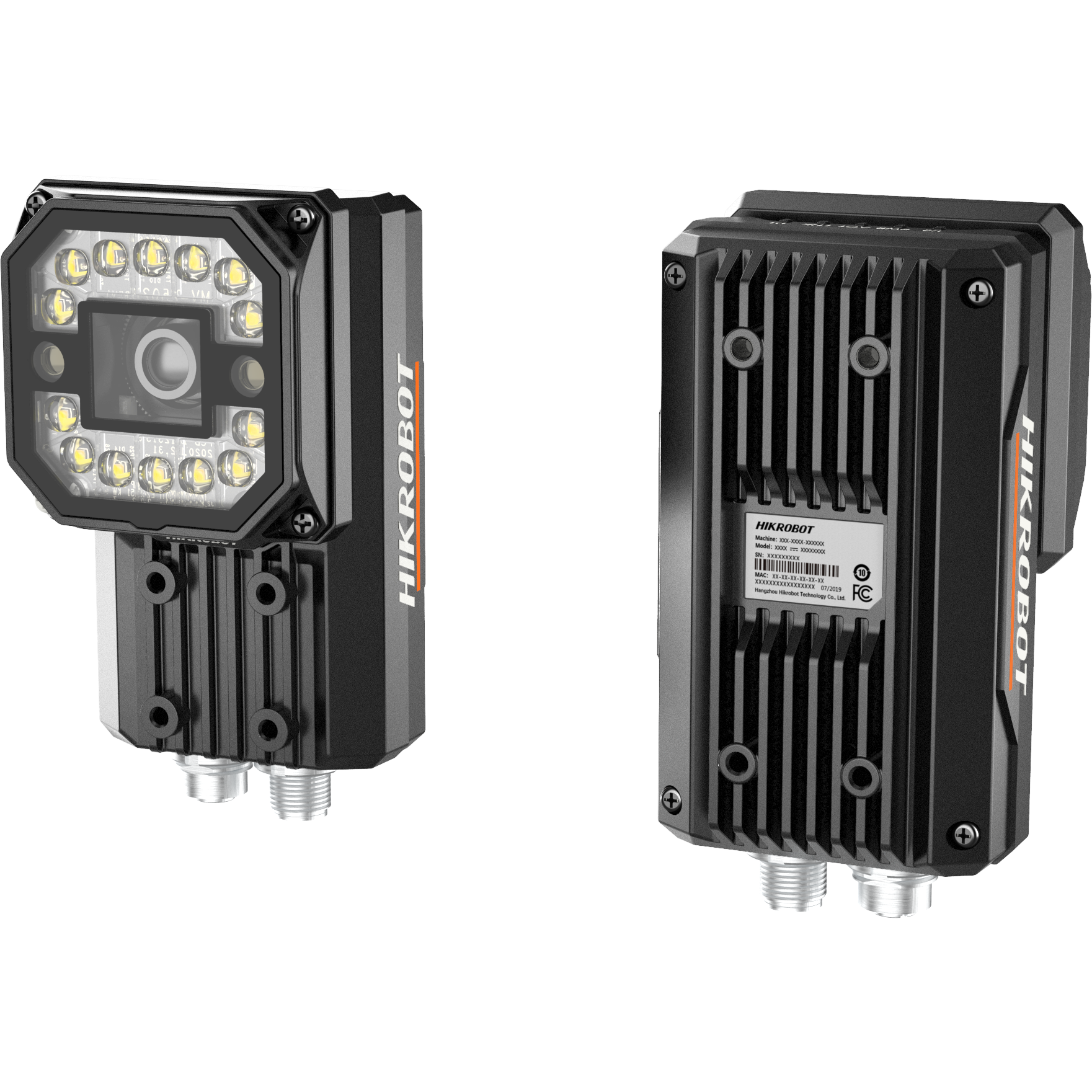

| Type | ID5000 Series 4.2MP，12mm，white lighting industrial Code Reader |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, UPCA, UPCE, ITF 14, ITF 25, Matrix 25, MSI, China Post, Code 11, and Industrial 25 2-dimensional codes: QR Code, Data Matrix Stack codes: PDF 417 |
| Max. reading speed | 90 codes/sec |
| Pixel size | 3.2 µm × 3.2 µm |
| Sensor size | 1/1.7″ |
| Resolution | 2368 × 1760 |
| Exposure time | 60 μs to 1 sec |
| Communication protocol | SmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, Ethernet/IP, MELSEC, ModBus, Fins, SLMP |
| Focal length | 12 mm (0.5″) |
| Lens Mount | M12-mount, mechanical autofocus supported. |
| Light source | White light by default. Red/blue/IR light is optional. |
| Interface | GigE |
| Power supply | 24 VDC |
| Max. power consumption | 60 W@24 VDC |
| Dimension | 112.5 mm × 65.5 mm × 63.3 mm |
| Weight | 450g |
| Ingress protection | IP67 |
| Temperature | 0-50 |
| Client software | IDMVS |
| Certification | CE, FCC, RoHS, KC |
For more information about the features, visit the Hikrobot Product Documentation.
