Description

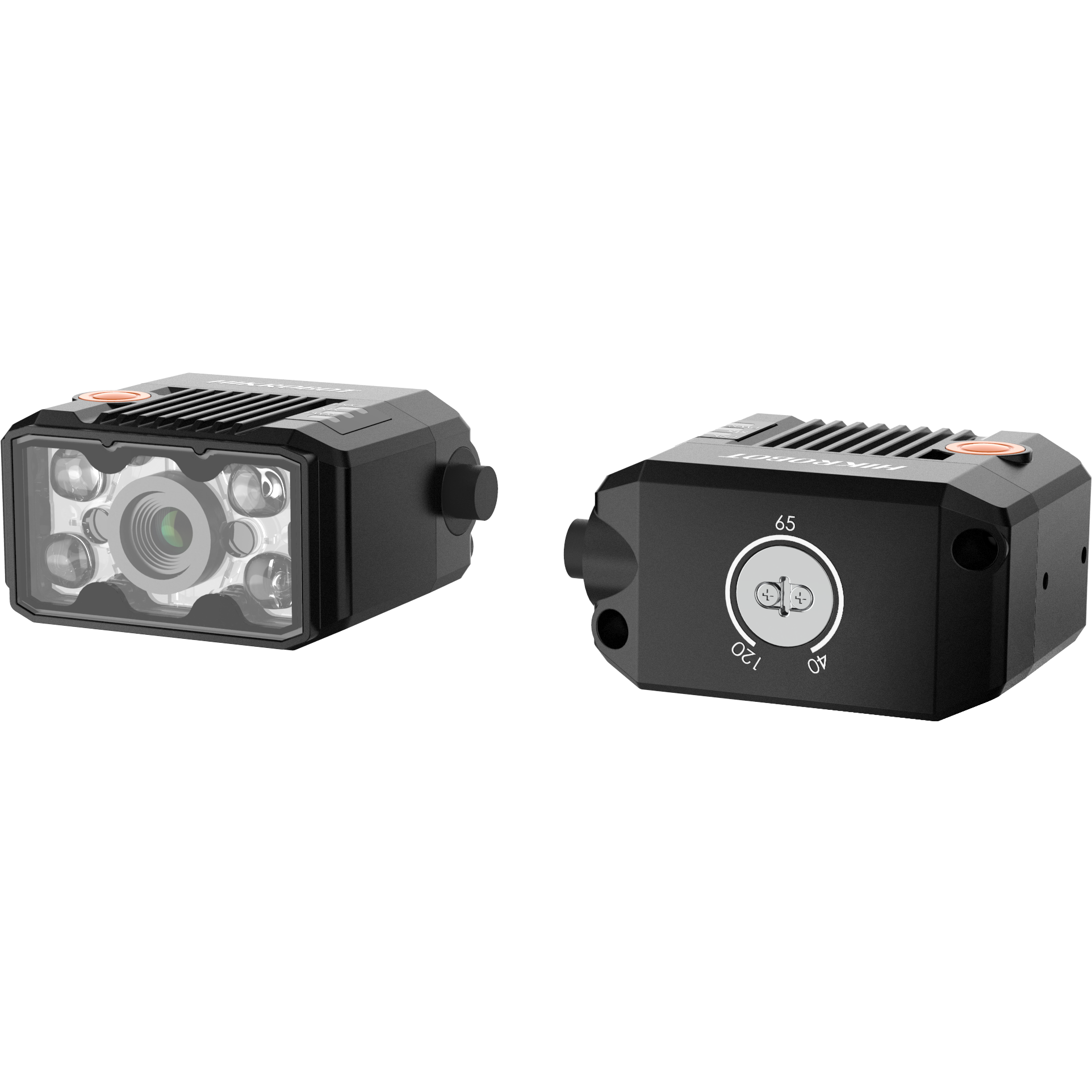

| Type | 6mm focal length 1.6MP PRO Series Compact Industrial Code Reader |
| Symbologies | 1D codes: Code 39, Code 93, Code 128, CodaBar, EAN 8, EAN 13, ITF 14, ITF 25, MATRIX 25, UPCA, UPCE, MSI, Code 11, Industrial 25, China Post, and Pharmacode 2D codes: QR Code, Data Matrix, Micro QR, and AZTEC Stacked codes: PDF 417 |
| Max. reading speed | 45 codes/sec |
| Pixel size | 3.45 µm × 3.45 µm |
| Sensor size | 1/2.9″ |
| Resolution | 1408 × 1024 |
| Exposure time | 16 μs to 1 sec |
| Communication protocol | SmartSDK，USB |
| Focal length | 6.72 mm (0.3″) |
| Working distance | 40 mm to 120 mm (1.6″ to 4.7″) |
| Ambient illumination | 0 lux to 50000 lux |
| Light source | White |
| Interface | USB2.0 |
| Power supply | 5 VDC (USB2.0 provides the power supply) |
| Max. power consumption | 4,6 W@5 VDC (USB3.0 provides the power supply) |
| Mount | M10-mount, manual focus adjustment supported |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | 160g |
| Ingress protection | IP65 |
| Temperature | 0-50 |
| Client software | IDMVS |
| Certification | CE, RoHS, KC |
For more information about the features, visit the Hikrobot Product Documentation.
