Description

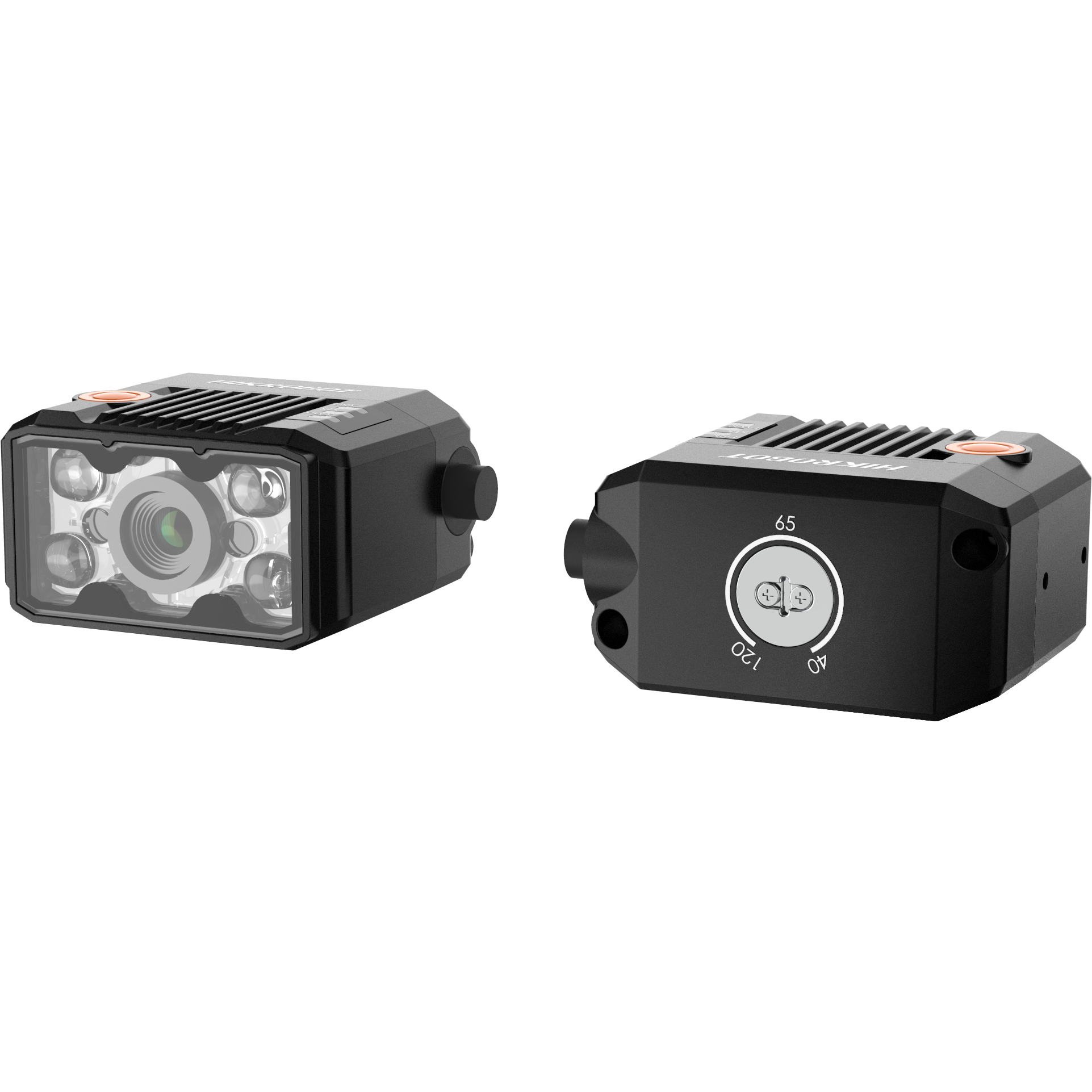

| Type | 6mm focal length 0.4MP Ultra-Compact Industrial Code Reader |
| Symbologies | 1-dimensional codes: Code 39, Code 93, Code 128, ITF 14, ITF 25, CodaBar, EAN, UPCA, UPCE 2-dimensional codes: QR Code, Data Matrix |
| Max. reading speed | 41 codes/sec |
| Pixel size | 6.9 µm × 6.9 µm |
| Sensor size | 1/2.9″ |
| Resolution | 704 × 540 |
| Exposure time | 16 μs to 1 sec |
| Communication protocol | SmartSDK, TCP Client, Serial, FTP, TCP Server, Profinet, MELSEC, Ethernet/IP, ModBus, UDP, Fins, SLMP |
| Focal length | 6 mm (0.2″) |
| Working distance | 40 mm to 120 mm (1.6″ to 4.7″), adjusting focus manually supported |
| Ambient illumination | 0 lux to 50000 lux |
| Light source | White LED |
| Interface | Ethernet |
| Power supply | 12 VDC to 24 VDC |
| Max. power consumption | 10.6 W@24 VDC |
| Dimension | 46 mm × 38 mm × 25 mm |
| Weight | 160g |
| Ingress protection | IP65 |
| Temperature | 0-50 |
| Client software | IDMVS |
| Certification | CE, RoHS |
For more information about the features, visit the Hikrobot Product Documentation.
