MHR1220M

MHR1220M

Series MH-M Series

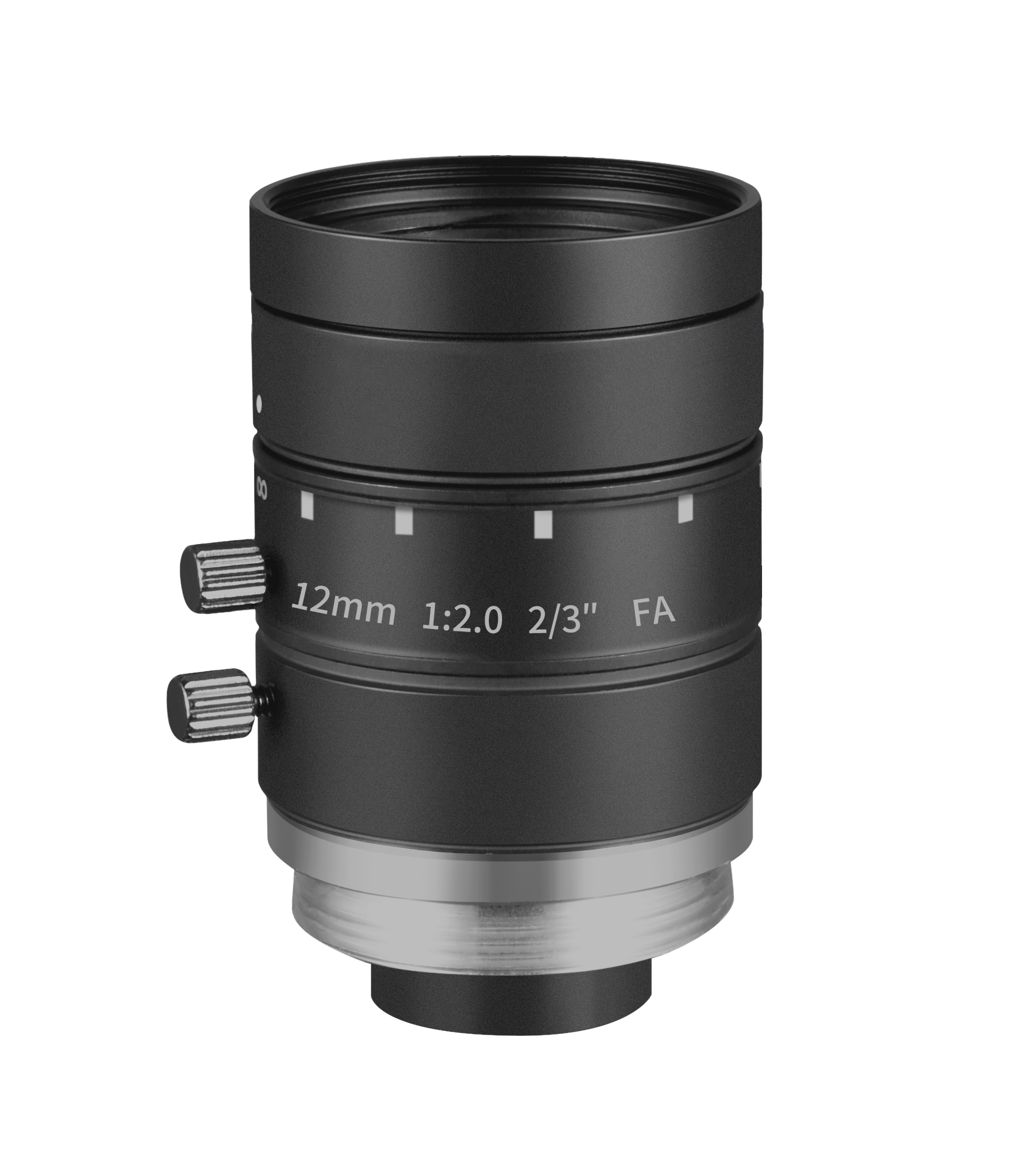

Model MHR1220M
Focal Length 12mm
Aperture F2.0 – F16
Image Sensor Size Ф11.4mm(2/3″)
Focus Range 0.15m to infinite
Optical Distortion -0.02%
TV Distortion -0.01%
Field of View 48.8°x38.4°x32.5°(11mmx8.5mmx7.12mm)
Relative Illumination 60% (F2.0); 95% (F4.0)
CRA（Chief Ray Angle) 11°
Spectral Range 436nm~656nm
Spectral Transmission T>85%
Camera Mount C Mount
Filter Thread M27xP0.5
Focus Control Manual
Iris Control Manual
Product Dimensions 37.65mm×Ф29mm
Net Weight 61 g
Operating Temperature -20°C to ~50°C
Add to Quote
Category: Tag: Brand:

Description

  • Support up to 2/3″ camera sensors
  • 6 models, focal length covering from 8mm to 50mm
  • High resolution for 8MP camera in full of view clear and uniform imaging；
  • Large aperture，mainly F2.0；
  • Low distorion；
  • Stable sharpness quality when temperature varies from -20℃~50℃；

Dimensions

Downloads

MHR1220M_Datasheet_2025-08-26.pdf
MHR1220M_3D.rar

Additional information

Field of view

48.8°x38.4°x32.5°(11mmx8.5mmx7.12mm)
Focus control

Manual
Cra (chief ray angle)

11°
