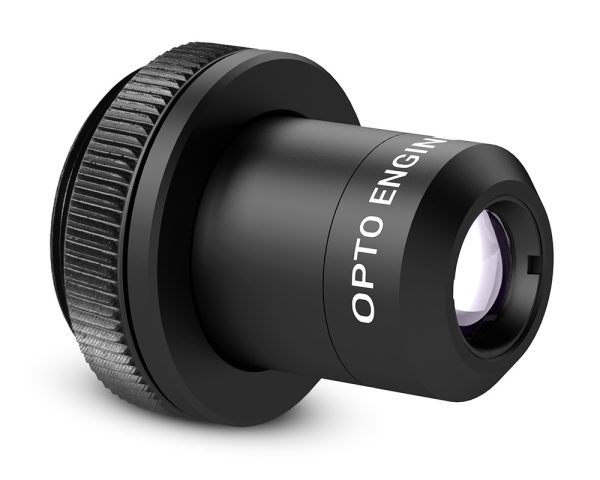

MC3M033X

Specification Value
Magnification 0.333 (x)
Image circle diameter 17.6 (mm)
Max sensor size 1.1″
2/3″ 25.53 x 21.29 (mm x mm)
1/1.2″ 34.08 x 21.41 (mm x mm)
1″ 42.61 x 22.55 (mm x mm)
1.1″ 42.52 x 31.14 (mm x mm)
Working distance 122.7 (mm)
Focal length 32 (mm)
f/N 5
Working f/N 6.5
Distortion < 0.05 (%)
Depth of field 3.00 (mm)
Resolution 12.4 (μm)
Mount C
Length 30.4 (mm)
Outer diameter 30.0 (mm)
Mass 28 (g)
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Percent deviation of the real image compared to an ideal, undistorted image.
  4. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  5. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  6. Measured from the front end of the mechanics to the camera flange.
