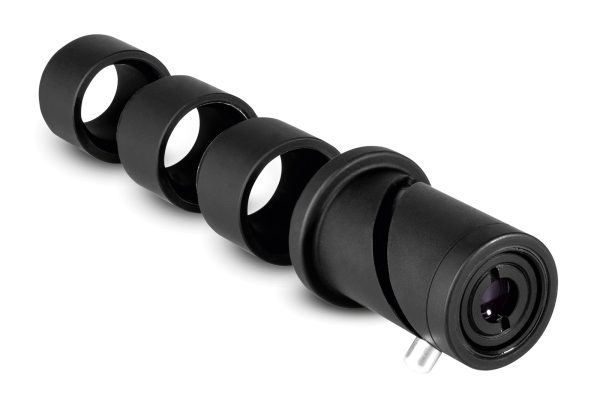

MC3-03X

MC3-03X

Specification Value
Magnification 0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.3
2.1
2.2
2.3
2.4
2.5
2.6
2.7
2.8
2.9
3.0
Number of back focal spacers 0
0
0
0
0
0
0
0
0
0
1
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
Max sensor size 2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
2/3″
1/3″ 48.00 x 36.00
24.00 x 18.00
16.00 x 12.00
12.00 x 9.00
9.60 x 7.20
8.00 x 6.00
6.86 x 5.14
6.00 x 4.50
5.33 x 4.00
4.80 x 3.60
6.86 x 5.14
6.00 x 4.50
5.33 x 4.00
4.80 x 3.60
4.36 x 3.27
4.00 x 3.00
3.69 x 2.77
3.43 x 2.57
3.20 x 2.40
3.00 x 2.25
3.43 x 2.57
3.20 x 2.40
3.00 x 2.25
2.82 x 2.12
2.67 x 2.00
2.53 x 1.89
2.40 x 1.80
2.29 x 1.71
2.18 x 1.64
2.09 x 1.57
2.29 x 1.71
2.18 x 1.64
2.09 x 1.57
2.00 x 1.50
1.92 x 1.44
1.85 x 1.38
1.78 x 1.33
1.71 x 1.29
1.66 x 1.24
1.60 x 1.20 (mm x mm)
1/2.5″ 57.00 x 42.80
28.50 x 21.40
19.00 x 14.27
14.25 x 10.70
11.40 x 8.56
9.50 x 7.13
8.14 x 6.11
7.13 x 5.35
6.33 x 4.76
5.70 x 4.28
8.14 x 6.11
7.13 x 5.35
6.33 x 4.76
5.70 x 4.28
5.18 x 3.89
4.75 x 3.57
4.38 x 3.29
4.07 x 3.06
3.80 x 2.85
3.56 x 2.68
4.07 x 3.06
3.80 x 2.85
3.56 x 2.68
3.35 x 2.52
3.17 x 2.38
3.00 x 2.25
2.85 x 2.14
2.71 x 2.04
2.59 x 1.95
2.48 x 1.86
2.71 x 2.04
2.59 x 1.95
2.48 x 1.86
2.38 x 1.78
2.28 x 1.71
2.19 x 1.65
2.11 x 1.59
2.04 x 1.53
1.97 x 1.48
1.90 x 1.43 (mm x mm)
1/2″ 64.00 x 48.00
32.00 x 24.00
21.33 x 16.00
16.00 x 12.00
12.80 x 9.60
10.67 x 8.00
9.14 x 6.86
8.00 x 6.00
7.11 x 5.33
6.40 x 4.80
9.14 x 6.86
8.00 x 6.00
7.11 x 5.33
6.40 x 4.80
5.82 x 4.36
5.33 x 4.00
4.92 x 3.69
4.57 x 3.43
4.27 x 3.20
4.00 x 3.00
4.57 x 3.43
4.27 x 3.20
4.00 x 3.00
3.76 x 2.82
3.56 x 2.67
3.37 x 2.53
3.20 x 2.40
3.05 x 2.29
2.91 x 2.18
2.78 x 2.09
3.05 x 2.29
2.91 x 2.18
2.78 x 2.09
2.67 x 2.00
2.56 x 1.92
2.46 x 1.85
2.37 x 1.78
2.29 x 1.71
2.21 x 1.66
2.13 x 1.60 (mm x mm)
1/1.8″ 71.30 x 53.30
35.65 x 26.65
23.77 x 17.77
17.83 x 13.33
14.26 x 10.66
11.88 x 8.88
10.19 x 7.61
8.91 x 6.66
7.92 x 5.92
7.13 x 5.33
10.19 x 7.61
8.91 x 6.66
7.92 x 5.92
7.13 x 5.33
6.48 x 4.85
5.94 x 4.44
5.48 x 4.10
5.09 x 3.81
4.75 x 3.55
4.46 x 3.33
5.09 x 3.81
4.75 x 3.55
4.46 x 3.33
4.19 x 3.14
3.96 x 2.96
3.75 x 2.81
3.57 x 2.67
3.40 x 2.54
3.24 x 2.42
3.10 x 2.32
3.40 x 2.54
3.24 x 2.42
3.10 x 2.32
2.97 x 2.22
2.85 x 2.13
2.74 x 2.05
2.64 x 1.97
2.55 x 1.90
2.46 x 1.84
2.38 x 1.78 (mm x mm)
2/3″ 85.00 x 70.90
42.50 x 35.45
28.33 x 23.63
21.25 x 17.73
17.00 x 14.18
14.17 x 11.82
12.14 x 10.13
10.63 x 8.86
9.44 x 7.88
8.50 x 7.09
12.14 x 10.13
10.63 x 8.86
9.44 x 7.88
8.50 x 7.09
7.73 x 6.45
7.08 x 5.91
6.54 x 5.45
6.07 x 5.06
5.67 x 4.73
5.31 x 4.43
6.07 x 5.06
5.67 x 4.73
5.31 x 4.43
5.00 x 4.17
4.72 x 3.94
4.47 x 3.73
4.25 x 3.55
4.05 x 3.38
3.86 x 3.22
3.70 x 3.08
4.05 x 3.38
3.86 x 3.22
3.70 x 3.08
3.54 x 2.95
3.40 x 2.84
3.27 x 2.73
3.15 x 2.63
3.04 x 2.53
2.93 x 2.44
2.83 x 2.36 (mm x mm)
Working distance 275
136
92
71
60
54
50
47
46
46
31
29
28
27
28
28
29
31
32
34
12
14
15
17
19
21
23
25
27
30
7
9
11
14
16
18
21
23
26
28 (mm)
Focal length 28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28
28 (mm)
f/N 5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
5.3
Working f/N 6
6
7
7
8
9
9
10
10
11
9
10
10
11
11
12
12
13
13
14
13
13
14
14
15
15
16
16
17
18
16
17
18
18
19
19
20
20
21
21
Distortion < 0.10
< 0.10
< 0.08
< 0.05
< 0.04
< 0.03
< 0.03
< 0.02
< 0.01
< 0.01
< 0.03
< 0.02
< 0.01
< 0.01
< 0.01
< 0.01
< 0.01
< 0.01
< 0.01
< 0.01
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02
< 0.02 (%)
Depth of field 31.10
7.80
4.00
2.30
1.70
1.30
1.00
0.80
0.60
0.60
1.00
0.80
0.60
0.60
0.50
0.40
0.40
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.20
0.10
0.10
0.10
0.10
0.10 (mm)
Resolution 38
19
15
11
10
10
8
8
7
7
8
8
7
7
6
6
6
6
5
6
6
5
6
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
4 (μm)
Mount C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
C
Phase adjustment No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
No
Length 50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
50.8
69.3
69.3
69.3
69.3
69.3
69.3
69.3
69.3
69.3
69.3
87.8
87.8
87.8
87.8
87.8
87.8
87.8
87.8
87.8
87.8
106.3
106.3
106.3
106.3
106.3
106.3
106.3
106.3
106.3
106.3 (mm)
Front diameter 28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0
28.0 (mm)
Mass 64
64
64
64
64
64
64
64
64
64
84
84
84
84
84
84
84
84
84
84
104
104
104
104
104
104
104
104
104
104
124
124
124
124
124
124
124
124
124
124 (g)
Add to Quote
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Percent deviation of the real image compared to an ideal, undistorted image.
  4. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  5. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  6. Measured from the front end of the mechanics to the camera flange.
