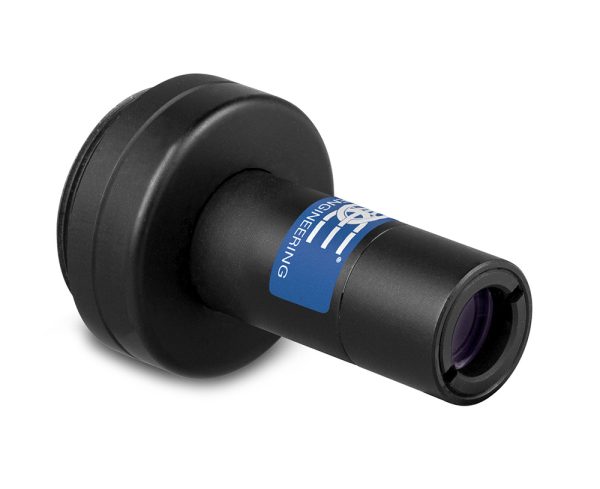

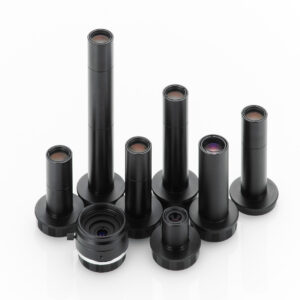

MC075X

Specification Value
Magnification 0.750 (x)
Image circle diameter 11.0 (mm)
Max sensor size 2/3″
1/3″ 6.40 x 4.80 (mm x mm)
1/2.5″ 7.60 x 5.71 (mm x mm)
1/2″ 8.53 x 6.40 (mm x mm)
1/1.8″ 9.51 x 7.11 (mm x mm)
2/3″ 11.33 x 9.45 (mm x mm)
Working distance 55.9 (mm)
Focal length 28 (mm)
f/N 5.3
Working f/N 9
Distortion < 0.02 (%)
Depth of field 0.80 (mm)
Resolution 7.6 (μm)
Mount C
Length 42.8 (mm)
Outer diameter 30.0 (mm)
Mass 30 (g)
Category: Tag: Brand:

Description

  1. Working distance: distance between the front end of the mechanics and the object. Set this distance within ±3% of the nominal value for maximum resolution and minimum distortion.
  2. Working f-number (wf/N): the real f-number of a lens in operating conditions.
  3. Percent deviation of the real image compared to an ideal, undistorted image.
  4. At the borders of the field depth the image can be still used for measurement but, to get a very sharp image, only half of the nominal field depth should be considered. Pixel size used for calculation is 3.45 μm.
  5. Object side, calculated with the Rayleigh criterion with λ= 520 nm
  6. Measured from the front end of the mechanics to the camera flange.

Additional information

Lens mount

C

Distortion

< 0.02 (%)

Optmag

0.750 (x)

Color
Accessory developer

Opto

Outer diameter

30.0 (mm)

F/n

5.3

Focal length

28 (mm)

Resolution

7.6 (μm)

Image circle diameter

11.0 (mm)

Length

42.8 (mm)

Mass

30 (g)

Depth of field

0.80 (mm)

Working f/N

9

Working distance

55.9 (mm)

Zoom ratio

0.750 (x)

Focal length (mm)

28 (mm)

Sensor size
