Description
- ± 15%. See datasheet for measurments distance.
- Tolerance ± 2%.
- Constant voltage power supply.
- Constant current power supply.

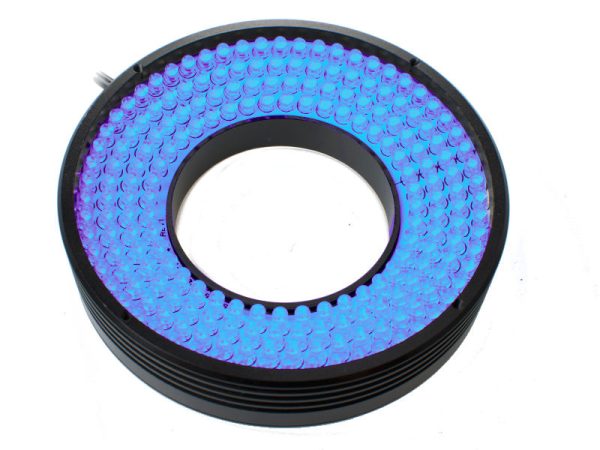

LTZGK090-15-4-B-24V
| Specification | Value |
|---|---|
| Illumination area outer diameter | 85.0 (mm) |
| Illumination area inner diameter | 49.4 (mm) |
| Optimal working distance | 110-130 (mm) |
| Emission angle | 15 (deg) |
| Number of LED rows | 4 |
| Light color, peak wavelength | blue, 470 nm |
| Illuminance | 99600 (lux) |
| Supply voltage | 24 (V) |
| Current | 420 (mA) |
| Power consumption | 10.1 (W) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 2908 (mA) |
| Max duty-cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Connector | JST SMR-03V |
| Cable length | 500 (mm) |
| Outer diameter | 92.0 (mm) |
| Inner diameter | 47.0 (mm) |
| Height | 20.5 (mm) |
| Mass | 180 (g) |
| Operating temperature | 0-45 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group according to CEI EN 62471:2010 | Exempt |
Additional information
| Cable length | 500 (mm) |
|---|---|
| Operating relative humidity | 20-85, non condensing (%) |
| Light color, peak wavelength | blue, 470 nm |
| Accessory developer | Opto |
| Inner diameter | 47.0 (mm) |
| Connector | JST SMR-03V |
| Supply voltage | 24 (V) |
| Height | 20.5 (mm) |
| Operating temperature | 0-45 (°C) |
| Outer diameter | 92.0 (mm) |
| Color | blue, 470 nm |
| Operation power source | 420 (mA) |
| Risk group (cei 62471) | Exempt |
| Current | 420 (mA) |
| Mass | 180 (g) |
| Illuminance | 99600 (lux) |
| Power consumption | 10.1 (W) |
| Max duty cycle | 10 (%) |
| Max pulse duration | 10 (ms) |
| Illumination area (outer) | 85.0 (mm) |
| Illumination area (inner) | 49.4 (mm) |
| Optimal working distance | 110-130 (mm) |
| Number of led rows | 4 |
| Emission angle | 15 (deg) |
| Max pulse voltage | 24-48 (36 recomended) (V) |
| Max pulse current | 2908 (mA) |
