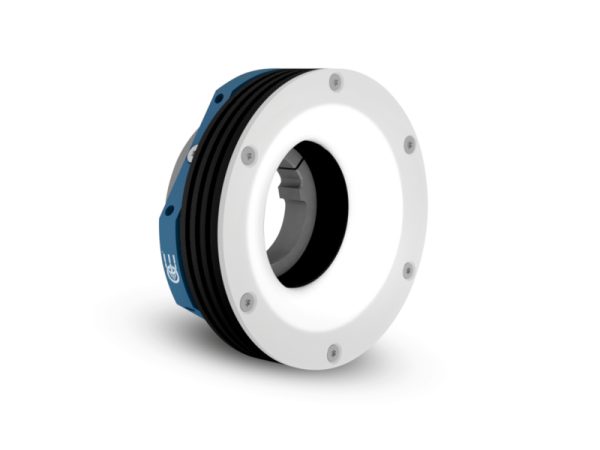

LTRNHP075R45

LTRNHP075R45

Specification Value
Illumination area outer diameter 65.0 (mm)
Illumination area inner diameter 43.5 (mm)
Emission angle 45 (deg)
Optimal working distance 20-50 (mm)
Number of LEDs 48
Light color, peak wavelength red, 625 nm
Spectral FWHM 20 (nm)
Illuminance n.a. (klux)
Diffuser yes
Supply voltage 24
Current 420 (mA)
Power consumption 10 (W)
Max pulse current 2.8 (A)
Peak power consumption 79 (W)
Max pulse duration 1 (ms)
Max duty-cycle 2 (%)
Estimated MTBF > 20000 (hours)
Connector WEIPU SP2110/P5
Cables CBLT010 included
Outer diameter 86.0 (mm)
Inner diameter 28.0 (mm)
Height 38.0 (mm)
Mass 400 (g)
Clamping system 8x M4 threaded holes
Operating temperature 0-40 (°C)
Storage temperature -20-+60 (°C)
Operating relative humidity 20-85, non condensing (%)
Installation Indoor use only
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. Measured at minimum working distance
  2. ± 2%.
  3. With constant driving voltage.
  4. At 25°C. At max pulse width (1 ms), max pulse frequency = 15 Hz.

Additional information

Mass

400 (g)
Number of leds

48
Light color, peak wavelength

red, 625 nm
Accessory developer

Opto
Inner diameter

28.0 (mm)
Supply voltage

24
Height

38.0 (mm)
Operating temperature

0-40 (°C)
Storage temperature

-20-+60 (°C)
Installation

Indoor use only
Outer diameter

86.0 (mm)
Color

red, 625 nm
Operation power source

420 (mA)
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Spectral fwhm

20 (nm)
Diffuser

yes
Connector

WEIPU SP2110/P5
Illuminance

n.a. (klux)
Current

420 (mA)
Power consumption

10 (W)
Peak power consumption

79 (W)
Max duty cycle

2 (%)
Max pulse duration

1 (ms)
Cables

CBLT010 included
Clamping system

8x M4 threaded holes
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

65.0 (mm)
Illumination area (inner)

43.5 (mm)
Optimal working distance

20-50 (mm)
Emission angle

45 (deg)
Max pulse current

2.8 (A)
