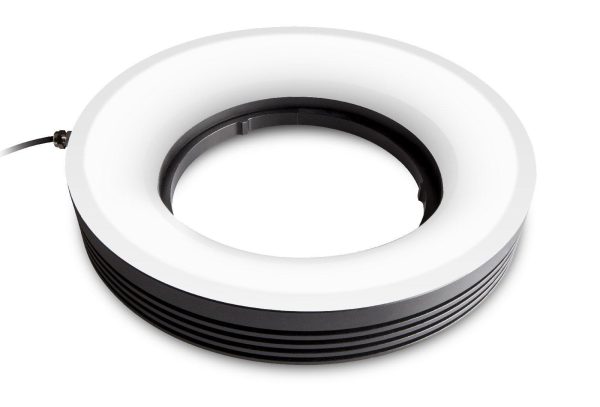

LTRN245RGBW

Specification	Value
Illumination area outer diameter	225.0 (mm)
Illumination area inner diameter	160.0 (mm)
Emission angle	45 (deg)
Optimal working distance	45-65 (mm)
Number of LED rows	1
Light color, peak wavelength	RGBW
Illuminance at minimum working distance	7110 (lux)
Illuminance at maximum working distance	6250 (lux)
Supply voltage	24 (V)
Current	1120 (mA)
Power consumption	26.9 (W)
Estimated MTBF	– (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	2240 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	4x Flying leads
Cable length	1000 (mm)
Outer diameter	245.0 (mm)
Inner diameter	117.0 (mm)
Height	48.0 (mm)
Mass	1200 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Risk group 2

Description

Cable length	1000 (mm)
Risk group (cei 62471)	Risk group 2
Light color, peak wavelength	RGBW
Accessory developer	Opto
Lux at max wd	6250 (lux)
Connector	4x Flying leads
Supply voltage	24 (V)
Height	48.0 (mm)
Operating temperature	0-45 (°C)
Outer diameter	245.0 (mm)
Color	RGBW
Operation power source	1120 (mA)
Operating relative humidity	20-85, non condensing (%)
Current	1120 (mA)
Max duty cycle	10 (%)
Mass	1200 (g)
Power consumption	26.9 (W)
Max pulse duration	10 (ms)
Estimated mtbf
Illumination area (outer)	225.0 (mm)
Illumination area (inner)	160.0 (mm)
Optimal working distance	45-65 (mm)
Number of led rows	1
Emission angle	45 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	117.0 (mm)
Lux at min wd	7110 (lux)
Max pulse current	2240 (mA)
