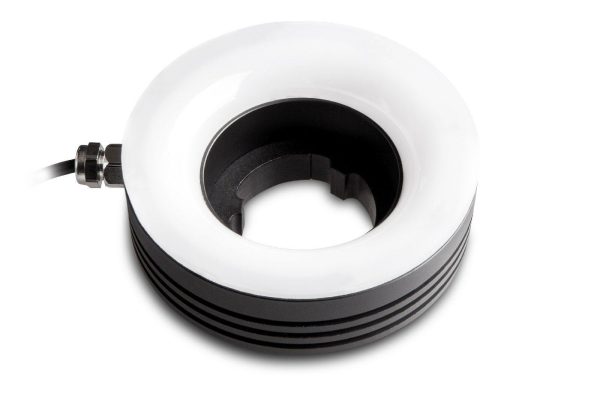

LTRN075RGBW

Specification	Value
Illumination area outer diameter	65.4 (mm)
Illumination area inner diameter	46.8 (mm)
Emission angle	45 (deg)
Optimal working distance	55-74 (mm)
Number of LED rows	1
Light color, peak wavelength	RGBW
Illuminance at minimum working distance	2280 (lux)
Illuminance at maximum working distance	1900 (lux)
Supply voltage	24 (V)
Current	90 (mA)
Power consumption	2.2 (W)
Estimated MTBF	– (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	755 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	4x Flying leads
Cable length	1000 (mm)
Outer diameter	75.4 (mm)
Inner diameter	28.0 (mm)
Height	22.0 (mm)
Mass	100 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Risk group 2

Description

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	RGBW
Accessory developer	Opto
Lux at max wd	1900 (lux)
Connector	4x Flying leads
Supply voltage	24 (V)
Height	22.0 (mm)
Operating temperature	0-45 (°C)
Outer diameter	75.4 (mm)
Color	RGBW
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 2
Current	90 (mA)
Mass	100 (g)
Power consumption	2.2 (W)
Max pulse duration	10 (ms)
Estimated mtbf
Illumination area (outer)	65.4 (mm)
Illumination area (inner)	46.8 (mm)
Optimal working distance	55-74 (mm)
Number of led rows	1
Emission angle	45 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	28.0 (mm)
Lux at min wd	2280 (lux)
Max pulse current	755 (mA)
Operation power source	90 (mA)
