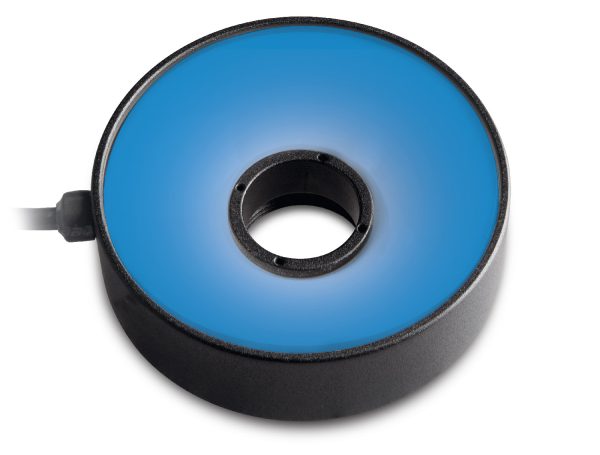

LTRN050B45

LTRN050B45

Specification Value
Illumination area outer diameter 49.0 (mm)
Illumination area inner diameter 19.0 (mm)
Emission angle 45 (deg)
Optimal working distance 20-80 (mm)
Number of LED rows 2
Light color, peak wavelength blue, 470 nm
Illuminance at minimum working distance 15280 (lux)
Illuminance at maximum working distance 2250 (lux)
Supply voltage 24 (V)
Current 105 (mA)
Power consumption 2.5 (W)
Estimated MTBF > 20000 (hours)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 315 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector Flying leads
Cable length 1000 (mm)
Outer diameter 53.5 (mm)
Inner diameter 15.2 (mm)
Height 22.0 (mm)
Mass 45 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Add to Quote
Category: Tag: Brand:

Description

  1. ± 15%.
  2. Tolerance ± 2%.
  3. At 25°C.
  4. Constant voltage power supply.
  5. Constant current power supply.

Additional information

Cable length

1000 (mm)
Max duty cycle

10 (%)
Light color, peak wavelength

blue, 470 nm
Accessory developer

Opto
Lux at max wd

2250 (lux)
Connector

Flying leads
Supply voltage

24 (V)
Height

22.0 (mm)
Operating temperature

0-45 (°C)
Outer diameter

53.5 (mm)
Color

blue, 470 nm
Operating relative humidity

20-85, non condensing (%)
Risk group (cei 62471)

Exempt
Current

105 (mA)
Mass

45 (g)
Power consumption

2.5 (W)
Max pulse duration

10 (ms)
Estimated mtbf

> 20000 (hours)
Illumination area (outer)

49.0 (mm)
Illumination area (inner)

19.0 (mm)
Optimal working distance

20-80 (mm)
Number of led rows

2
Emission angle

45 (deg)
Max pulse voltage

24-48 (36 recomended) (V)
Inner diameter

15.2 (mm)
Lux at min wd

15280 (lux)
Max pulse current

315 (mA)
Operation power source

105 (mA)
