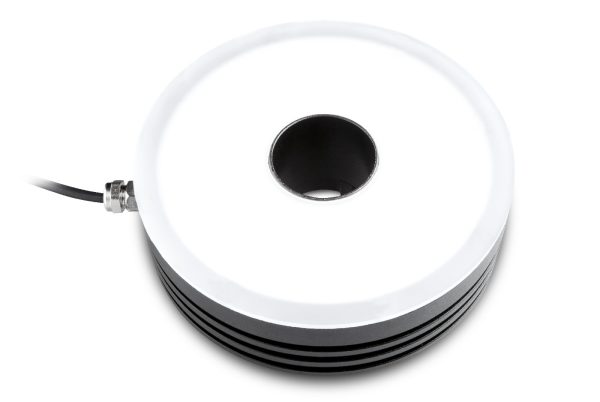

LTRN023NW

Specification	Value
Illumination area outer diameter	90.0 (mm)
Illumination area inner diameter	40.0 (mm)
Emission angle	0 (deg)
Optimal working distance	55-85 (mm)
Number of LED rows	1
Light color, peak wavelength	white, 6300 K
Illuminance at minimum working distance	25700 (lux)
Illuminance at maximum working distance	15000 (lux)
Supply voltage	24 (V)
Current	480 (mA)
Power consumption	11.5 (W)
Estimated MTBF	> 20000 (hours)
Max pulse voltage	24-48 (36 recomended) (V)
Max pulse current	1440 (mA)
Max duty-cycle	10 (%)
Max pulse duration	10 (ms)
Connector	Flying leads
Cable length	1000 (mm)
Outer diameter	104.0 (mm)
Inner diameter	28.0 (mm)
Height	39.6 (mm)
Mass	283 (g)
Operating temperature	0-45 (°C)
Operating relative humidity	20-85, non condensing (%)
Risk group according to CEI EN 62471:2010	Exempt

Description

Cable length	1000 (mm)
Max duty cycle	10 (%)
Light color, peak wavelength	white, 6300 K
Accessory developer	Opto
Lux at max wd	15000 (lux)
Connector	Flying leads
Supply voltage	24 (V)
Height	39.6 (mm)
Operating temperature	0-45 (°C)
Outer diameter	104.0 (mm)
Color	white, 6300 K
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Exempt
Current	480 (mA)
Mass	283 (g)
Power consumption	11.5 (W)
Max pulse duration	10 (ms)
Estimated mtbf	> 20000 (hours)
Illumination area (outer)	90.0 (mm)
Illumination area (inner)	40.0 (mm)
Optimal working distance	55-85 (mm)
Number of led rows	1
Emission angle	0 (deg)
Max pulse voltage	24-48 (36 recomended) (V)
Inner diameter	28.0 (mm)
Lux at min wd	25700 (lux)
Max pulse current	1440 (mA)
Operation power source	480 (mA)
