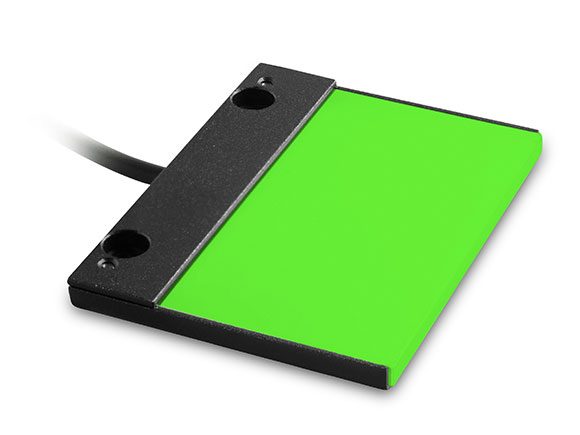

LTPVRG31X58-00-1-G-24V

Specification Value
Illumination area width 58 (mm)
Illumination area height 31 (mm)
Sides type 3 borders and 1 edge to edge
Light color, peak wavelength green, 525 nm
Illuminance 3880 (lux)
Supply voltage 24 (V)
Current 30 (mA)
Power consumption 0.7 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 80.0 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Length 60.0 (mm)
Width 43.5 (mm)
Height 5.3 (mm)
Mass 30 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Additional information

Cable length

500 (mm)

Operating temperature

0-45 (°C)

Lighting area (mm)

58 (mm) x 31 (mm)

Light color, peak wavelength

green, 525 nm

Max pulse current

80.0 (mA)

Accessory developer

Opto

Sides type

3 borders and 1 edge to edge

Length

60.0 (mm)

Connector

JST SMR-03V

Supply voltage

24 (V)

Height

5.3 (mm)

Width

43.5 (mm)

Color

green, 525 nm

Risk group (cei 62471)

Exempt

Illumination area width

58 (mm)

Mass

30 (g)

Operating relative humidity

20-85, non condensing (%)

Illumination area height

31 (mm)

Illuminance

3880 (lux)

Current

30 (mA)

Power consumption

0.7 (W)

Max duty cycle

10 (%)

Max pulse duration

10 (ms)

Max pulse voltage

24-48 (36 recomended) (V)

Operation power source

30 (mA)
