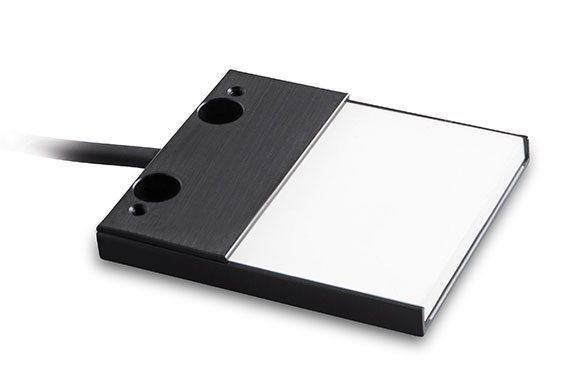

LTPVRG25X36-00-1-W-24V

Specification Value
Illumination area width 36 (mm)
Illumination area height 25 (mm)
Sides type 3 borders and 1 edge to edge
Light color, peak wavelength white, 6300 K
Illuminance 4999 (lux)
Supply voltage 24 (V)
Current 20 (mA)
Power consumption 0.5 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 40.0 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Length 43.5 (mm)
Width 38.5 (mm)
Height 5.3 (mm)
Mass 10 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Additional information

Cable length

500 (mm)

Operating temperature

0-45 (°C)

Lighting area (mm)

36 (mm) x 25 (mm)

Light color, peak wavelength

white, 6300 K

Max pulse current

40.0 (mA)

Accessory developer

Opto

Sides type

3 borders and 1 edge to edge

Length

43.5 (mm)

Connector

JST SMR-03V

Supply voltage

24 (V)

Height

5.3 (mm)

Width

38.5 (mm)

Color

white, 6300 K

Risk group (cei 62471)

Exempt

Illumination area width

36 (mm)

Mass

10 (g)

Operating relative humidity

20-85, non condensing (%)

Illumination area height

25 (mm)

Illuminance

4999 (lux)

Current

20 (mA)

Power consumption

0.5 (W)

Max duty cycle

10 (%)

Max pulse duration

10 (ms)

Max pulse voltage

24-48 (36 recomended) (V)

Operation power source

20 (mA)
