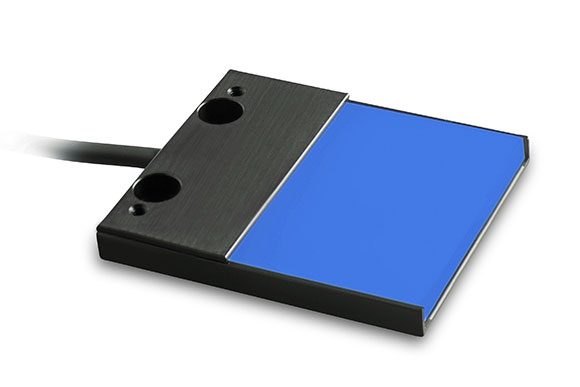

LTPVRG25X36-00-1-B-24V

Specification Value
Illumination area width 36 (mm)
Illumination area height 25 (mm)
Sides type 3 borders and 1 edge to edge
Light color, peak wavelength blue, 470 nm
Illuminance 4650 (lux)
Supply voltage 24 (V)
Current 20 (mA)
Power consumption 0.5 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 55.0 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Length 43.5 (mm)
Width 38.5 (mm)
Height 5.3 (mm)
Mass 10 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Additional information

Cable length

500 (mm)

Operating temperature

0-45 (°C)

Lighting area (mm)

36 (mm) x 25 (mm)

Light color, peak wavelength

blue, 470 nm

Max pulse current

55.0 (mA)

Accessory developer

Opto

Sides type

3 borders and 1 edge to edge

Length

43.5 (mm)

Connector

JST SMR-03V

Supply voltage

24 (V)

Height

5.3 (mm)

Width

38.5 (mm)

Color

blue, 470 nm

Risk group (cei 62471)

Exempt

Illumination area width

36 (mm)

Mass

10 (g)

Operating relative humidity

20-85, non condensing (%)

Illumination area height

25 (mm)

Illuminance

4650 (lux)

Current

20 (mA)

Power consumption

0.5 (W)

Max duty cycle

10 (%)

Max pulse duration

10 (ms)

Max pulse voltage

24-48 (36 recomended) (V)

Operation power source

20 (mA)
