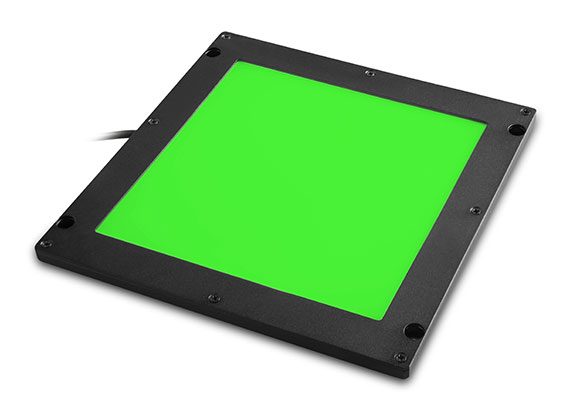

LTPVR100-00-1-G-24V

Specification Value
Illumination area width 100 (mm)
Illumination area height 100 (mm)
Sides type 4 borders
Light color, peak wavelength green, 525 nm
Illuminance 3620 (lux)
Supply voltage 24 (V)
Current 160 (mA)
Power consumption 3.8 (W)
Max pulse voltage 24-48 (36 recomended) (V)
Max pulse current 1230.0 (mA)
Max duty-cycle 10 (%)
Max pulse duration 10 (ms)
Connector JST SMR-03V
Cable length 500 (mm)
Length 128.5 (mm)
Width 128.5 (mm)
Height 5.3 (mm)
Mass 140 (g)
Operating temperature 0-45 (°C)
Operating relative humidity 20-85, non condensing (%)
Risk group according to CEI EN 62471:2010 Exempt
Category: Tag: Brand:

Description

  1. ± 15%. See datasheet for measurments distance
  2. Tolerance ± 2%
  3. Constant voltage power supply
  4. Constant current power supply

Additional information

Cable length

500 (mm)

Operating temperature

0-45 (°C)

Lighting area (mm)

100 (mm) x 100 (mm)

Light color, peak wavelength

green, 525 nm

Max pulse current

1230.0 (mA)

Accessory developer

Opto

Sides type

4 borders

Length

128.5 (mm)

Connector

JST SMR-03V

Supply voltage

24 (V)

Height

5.3 (mm)

Width

128.5 (mm)

Color

green, 525 nm

Risk group (cei 62471)

Exempt

Illumination area width

100 (mm)

Mass

140 (g)

Operating relative humidity

20-85, non condensing (%)

Illumination area height

100 (mm)

Illuminance

3620 (lux)

Current

160 (mA)

Power consumption

3.8 (W)

Max duty cycle

10 (%)

Max pulse duration

10 (ms)

Max pulse voltage

24-48 (36 recomended) (V)

Operation power source

160 (mA)
