Description
- Measured at minimum working distance
- ± 2%.
- Drop to 50% intensity @ 25°C.

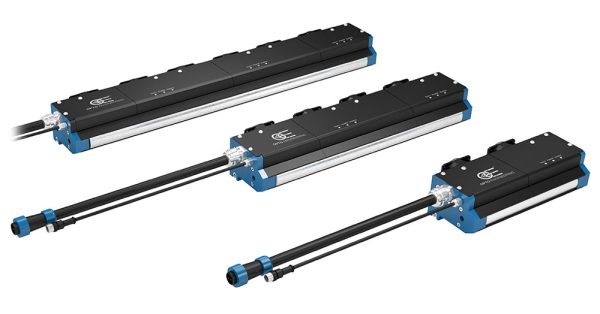

LTLNM-2000-N-FC-W
| Specification | Value |
|---|---|
| Modules | 10 |
| Illumination area length | 2000 (mm) |
| Illumination area height | 20 (mm) |
| Focusing | near |
| Optimal working distance | 10-100 (mm) |
| Number of LEDs | 480 |
| Light color, peak wavelength | white, 6200 K |
| Illuminance | n.a. (klux) |
| Diffuser | no |
| Supply voltage | 24 |
| Current | 30 (A) |
| Power consumption | 720 (W) |
| Estimated MTBF | > 20000 (hours) |
| Power connector | 2x WEIPU SP2110/P2 |
| Power cables | 2x CBLT008 included |
| I/O connector | M12, 5 pins |
| I/O cables | CBLT009 included |
| Length | 2050 (mm) |
| Width | 75 (mm) |
| Height | 128 (mm) |
| Mass | 18000 (g) |
| Clamping system | 4x M10 threaded holes |
| Cooling method | fan |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Operating relative humidity | 20-85, non condensing (%) |
| Installation | Indoor use only |
| Risk group according to CEI EN 62471:2010 | Risk group 2 |
Additional information
| Mass | 18000 (g) |
|---|---|
| Length | 2050 (mm) |
| Operation power source | 30 (A) |
| Light color, peak wavelength | white, 6200 K |
| Accessory developer | Opto |
| I/o cables | CBLT009 included |
| Supply voltage | 24 |
| Height | 128 (mm) |
| Width | 75 (mm) |
| Operating temperature | 0-40 (°C) |
| Storage temperature | 0-50 (°C) |
| Installation | Indoor use only |
| Color | white, 6200 K |
| Operating relative humidity | 20-85, non condensing (%) |
| Risk group (cei 62471) | Risk group 2 |
| Modules | 10 |
| Illumination area height | 20 (mm) |
| Number of leds | 480 |
| Illuminance | n.a. (klux) |
| Diffuser | no |
| Current | 30 (A) |
| Power consumption | 720 (W) |
| Clamping system | 4x M10 threaded holes |
| I/o connector | M12, 5 pins |
| Estimated mtbf | > 20000 (hours) |
| Optimal working distance | 10-100 (mm) |
| Illumination area length | 2000 (mm) |
| Cooling method | fan |
| Focusing | near |
| Power connector | 2x WEIPU SP2110/P2 |
| Power cables | 2x CBLT008 included |
| Lighting area (mm) | x 20 (mm) |
