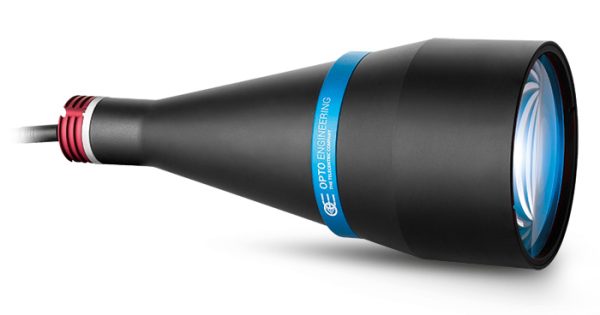

LTCLHP080-B

Specification	Value
Beam diameter	100 (mm)
Working distance range	150 – 300 (mm)
Light color, peak wavelength	blue, 460 nm
Spectral FWHM	25 (nm)
Supply voltage	12-24 (V)
Max power consumption	2.5 (W)
LED forward voltage typical (max)	3.3 (4.0) (V)
Max LED forward current	350 (mA)
Max pulse current	2000 (mA)
Connector	M8
Cables	CB244P1500 included
Length	277.3 (mm)
Front diameter	116.0 (mm)
Mass	1341 (g)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Operating relative humidity	20-85, non condensing (%)
Installation	Indoor use only
Risk group according to CEI EN 62471:2010	Risk group 2

Description

Opto Engineering® recommends green light for high precision measurement applications
Tolerance ± 10%
At max forward current. Tolerance is ± 0.06V on forward voltage measurements
In continuous mode (non-pulsed)
At pulse width <= 10 ms and duty cycle <= 10%. Built-in electronics board must be bypassed (see tech info)
Nominal value, with no spacers in place

Mass	1341 (g)
Working distance range	150 – 300 (mm)
Max pulse current	2000 (mA)
Accessory developer	Opto
Max led forward current	350 (mA)
Front diameter	116.0 (mm)
Connector	M8
Supply voltage	12-24 (V)
Operating temperature	0-40 (°C)
Storage temperature	0-50 (°C)
Installation	Indoor use only
Length	277.3 (mm)
Max power consumption	2.5 (W)
Color	blue, 460 nm
Operating relative humidity	20-85, non condensing (%)
Risk group (cei 62471)	Risk group 2
Spectral fwhm	25 (nm)
Cables	CB244P1500 included
Beam diameter	100 (mm)
Led fwd volt (typ/max)	3.3 (4.0) (V)
Light color, peak wavelength	blue, 460 nm
